Description | |

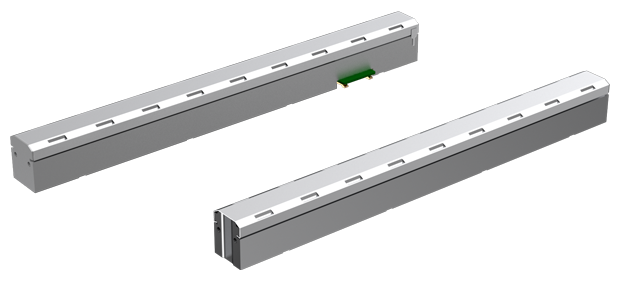

The TMR6318C is a 72 pixels, 10DPI magnetic image sensor (MIS) module. It integrates proprietary TMR magneto-resistance sensor, high-quality magnet to provide high sensitivity performance. The module is designed for full-scale paper bills, bank notes and security documents with magnetic materials and is suitable for scanning width up to 180mm. It features a 1-channel analog output to achieve a scanning rate of 15usec/line @ 5MHz pixel rate; Factory calibrated sensitivity of each pixel. |  TMR6318C |
Features and Benefits | |
 1-channel analog output | 15usec/line scanning speed |
| Compact size: L191.5mm x W16mm x H19mm | Built-in signal conditioner for each pixel |
| Built-in sensitivity calibration in factory | Auto-set each pixel’s bias voltage by SET pin |
| 10DPI resolution,180mm detection width with 2.5mm×72 pixels | No built-in magnet is available: TMR6318CN |
| TMR sensor, magnets and signal processing are integrated in one module | RoHS & REACH compliant |
Applications | |
| Currency verification | Magnetic document scanning |
| Non destructive testing | |
