Part No.	Feature	Product picture	Nominal current (A)	Voltage (V)	Accuracy (%FS)	Operating Temperature (℃)	Bandwidth (kHz). -3dB	Response (μs)	Datasheet

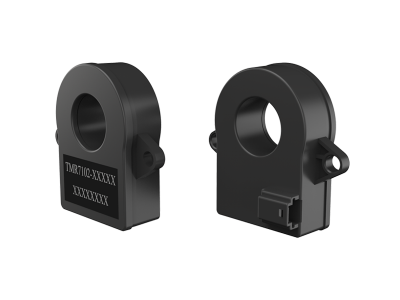

TMR7102-D	CAN Bus Digital Output Current Sensor		500	13.5	±0.5 to ±0.6	-40 to +85	/	/
TMR7102-E	CAN Bus Digital Output Current Sensor		500	13.5	±0.5 to ±0.6	-40 to +85	/	/

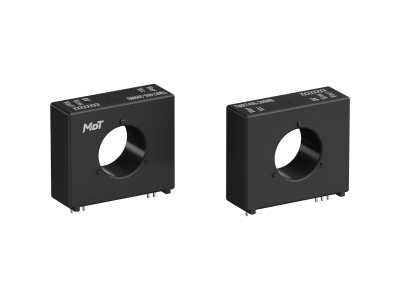

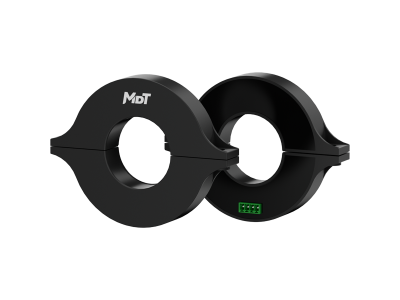

TMR7204-C	Open-close type current sensor with round hole		1000 to 5000	±10 to 15	±1	-40 to +85	50	5
TMR7302-E	Integrated Current Sensor		/	3.3/5	±1/±2	-40～+125	50	10
TMR7303-D/P1	Unibody, Miniture Current Sensor		10～120	5	±1～±3	-40～+105	500/600/300	0.5/0.6
TMR7304-B	Board Mount Precision Current Sensor		6 to 50	5	±0.8 to 1.4	-40 to +85	300	1
TMR7304-C	Board Mount Precision Current Sensor		6 to 50	5	±0.8 to 1.4	-40 to +85	300	1
TMR7304-D	Board Mount Precision Current Sensor		6 to 50	5	±0.8 to 1.4	-40 to +85	300	1
TMR7304-E	Board Mount Precision Current Sensor		75	5	±0.8/1.1	-40 to +85	300	1
TMR7307-C	Isolated, Wide Bandwidth, Open Loop TMR Current Sensor		20～50	5	±1～±2.5	-40～+105	500	1

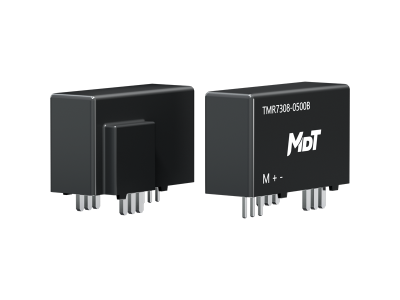

TMR7308-B	Board Mount Precision Current Sensor		50/100	±15	±0.5 to ±1	-40 to +85	200	1
TMR7406-B	Board Mount High Bandwidth Leakage Current Sensor		0.3 to 5	5	±0.6 / ±2	-40 to +105	400	1
TMR7406-Q	Board Mount High Bandwidth Leakage Current Sensor		0.3 to 5	5	±0.6 / ±2	-40 to +105	400	1
TMR7502-B	Unibody Low Temperature-Drift Current Sensor		500 to 2500	±10 to 15	±0.5/±1.5	-40 to +105	25	5
TMR7502-C	Unibody Low Temperature-Drift Current Sensor		500 to 3000	±10 to 15	±0.5/±1	-40 to +105	25	5
TMR7503-B	Unibody Low Temperature-Drift Current Sensor		50 to 600	±15	±0.5/±1.5	-40 to +105	180	1
TMR7503-C	Unibody Low Temperature-Drift Current Sensor		50 to 600	15	±0.5/±2.5	-40 to +105	100	1
TMR7503-D	Unibody Low Temperature-Drift Current Sensor		50 to 600	±15	±0.5/±1.5	-40 to +105	50	2
TMR7503-F	Unibody Low Temperature Coefficient Current Sensor		50 to 600	±15	±0.5/±1.5	-40 to +105	180	1
TMR7504-B	Unibody Low Temperature-Drift Current Sensor		200 to 1500	±15	±0.5	-40 to +105	25	5
TMR7504-C	Unibody Low Temperature-Drift Current Sensor		200 to 1500	±15	±0.5	-40 to +105	25	5
TMR7506-B	Unibody Low Temperature Coefficient Current Sensor		50～600	±15	±0.5～±1.5	-40～+85	50	2
TMR7506-C	Unibody Low Temperature Coefficient Current Sensor		50～600	±15	±0.5～±1.5	-40～+85	50	2
TMR7551-B	Unibody Precision Current Sensor		1000	±15 to 24	±0.3/±0.5	-40 to +85	100	1
TMR7551-C	Unibody Precision Current Sensor		1000	±15 to 24	±0.3/±0.5	-40 to +85	100	1

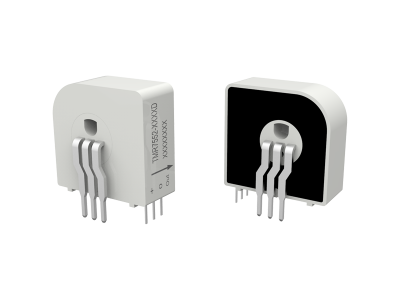

TMR7552-D	Unibody Precision Current Sensor		6 to 25	5	±0.5/±1	-40 to +85	100/200	0.3
TMR7552-E	Unibody Precision Current Sensor		6 to 25	5	±0.5/±1	-40 to +85	100/200	0.3

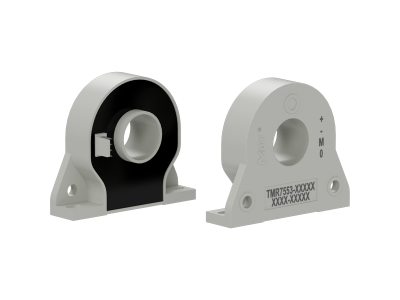

TMR7553-B	Unibody Precision Current Sensor		100 to 300	±15	±0.3/±0.5	-40 to +85	100	1
TMR7553-C	Unibody Precision Current Sensor		100 to 300	±15	±0.3/±0.5	-40 to +85	100	1
TMR7553-D	Unibody Precision Current Sensor		300	±15	±0.3/±0.5	-40 to +85	100	1
TMR7553-F	Unibody Precision Current Sensor		100 to 300	±15	±0.1/±0.3	-40 to +85	200	1
TMR7553-P	Unibody Precision Current Sensor		100 to 300	±15	±0.06/±0.3	-40 to +85	200	1
TMR7556-B	Unibody Precision Current Sensor		300	±15	±0.3/±0.5	-40 to +85	100	1
TMR7559-B	Board Mount Precision Current Sensor		100 to 250	5	±0.8/±1.4	-40 to +85	300	1
TMR7559-C	Board Mount Precision Current Sensor		100 to 250	5	±0.8/±1.4	-40 to +85	300	0.6
TMR7560-B	Unibody Precision Current Sensor		300	±15	±0.3/±0.5	-40 to +85	100	1
TMR7560-P	Unibody Precision Current Sensor		300/600	±18	±0.08/±0.2	-40 to +85	100	1
TMR7616-C	Current Sensor IC		/	3.3/5	±1~±3	-40~+125	600	0.8
TMR7401-300mA	Leakage current sensor		0.3	5	±2	-40 to 85	10	10
TMR7401-600mA	Leakage current sensor		0.6	5	±2	-40 to 85	10	10
TMR7401-1000mA	Leakage current sensor		1	5	±2	-40 to 85	10	10
TMR7901-B	Isolated Voltage Sensor		50 to 2000	±12 to ±24	±0.5	-40 to 85	14	30
TMR7903-B	B Series AC Voltage Switch Sensor		/	/	/	/	/	/
TMR-MAC005	Microampere Current Sensor		0.001	/	/	/	/	/
