TMR1340B MicroAmpere High Frequency Response Omnipolar Magnetic Switch Sensor
  • TMR1340-big
Part No.: TMR1340B
Type: Omnipolar
Supply Voltage(V): 1.8 to 5.5
Power Consumption(μA): 1.5 μA
Operating Modes: continuous power
Sensing Direction: X-axis
Bop (Gs,25°C)(Gs): ±14
Brp (Gs,25°C)(Gs): ±10
Output Interface: Open Drain
Package: SOT23-3
Lead Time: In stock

Description

TMR1340B is an omnipolar magnetic switch integrated the tunnel magnetoresistance (TMR) magnetic sensor and open-drain circuitry, which is able to detect the change of magnetic field and output high and low voltage signals for high accuracy position detection.

Unlike Hall/AMR sensors, TMR sensors with extremely high resistance values allows TMR1340B to achieve the supply current as low as 1.5 μA while operating in the full-time power supply mode, and maintaining the response frequency of the magnetic signal is 1 kHz. Therefore, TMR1340B can provide true continuous detection of magnetic field signals, avoiding sampling errors from the traditional time-sharing power supply mode.

TMR1340B allows a wide range of operating supply voltages from 1.8 V to 5.5 V with excellent temperature characteristics, and can meet the requirements of most applications. TMR1340B is available in compact SOT23-3 package.

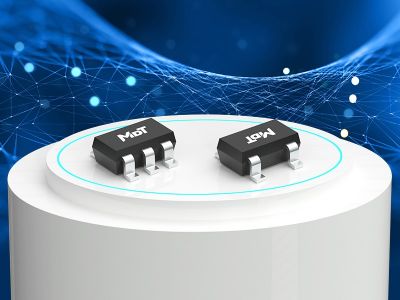

SOT23-3SOT23-3

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconHigh frequency response: typ. 1 kHziconOmnipolar operation
icon Wide range supply voltages: 1.8 V to 5.5 ViconOpen-drain push-pull output
iconLow power consumption: supply current 1.5 μAiconExcellent temperature stability
iconHigh tolerance to external magnetic field interferenceiconRoHS & REACH compliant

Applications

iconUtility meters: water, gas, and heat metersiconProximity switches
iconSpeed sensingiconLinear and rotation position sensing
