TMR3636D-BAC Low Voltage, Low Power TMR Angle Sensor
  • TMR3636-big
Part No.: TMR3636D-BAC
Type: Analog Series
Supply Voltage(V): 1.6 to 5.0
Angle Measurement(°): 360
Resistance(kΩ): /
PP (mV/V): /
Field Operating Range(Gs): 200 to 800
Angular Error: /
Output: Differential output
Package: DFN3L
Lead Time: In stock

Description

The TMR3636D-BAC is a low-voltage, low-power TMR programmable analog output angle sensor developed by MultiDimension Technology.

This sensor integrates a tunnel magnetoresistance (TMR) sensing element, a low-noise programmable operational amplifier, and a DAC signal conditioning circuit. The built-in signal conditioning circuit allows adjustments to offset, gain , and other parameters of the raw signal detected by the TMR sensor. The sensor outputs a corrected sinusoidal voltage signal that varies with the external magnetic field’s angle. As shown in the figure below, the signal period remains constant regardless of the magnetic field strength. The TMR3636D-BAC is ideal for various position detection applications, meeting customer requirements for low voltage operation, high resolution, and high signal-to-noise ratio.

This product is available in a DFN3L package (1.6 mm × 1.6 mm × 0.5 mm) and complies with RoHS and other environmental standards.

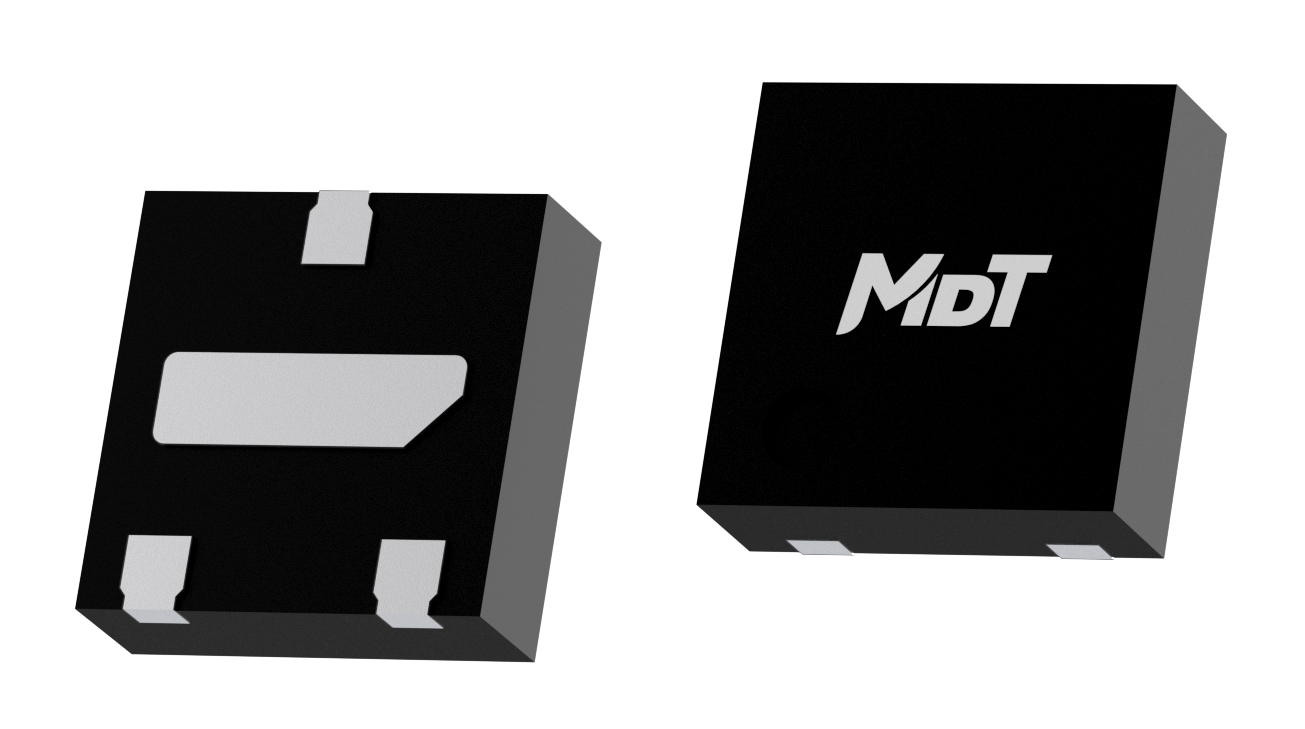

DFN3L

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconSupply voltage: 1.6 V to 5.0 V
iconStatic power consumption: < 260 μAiconFull 360° detection range
iconNon-linearity: 1.5% FS (±30°)icon Programmable gain: 3x to 30x
iconLow noise, low power consumptioniconSin+ / Sin- differential output
iconRoHS & REACH compliant

Applications

iconJoystickiconLinear displacement sensing
