Description | |

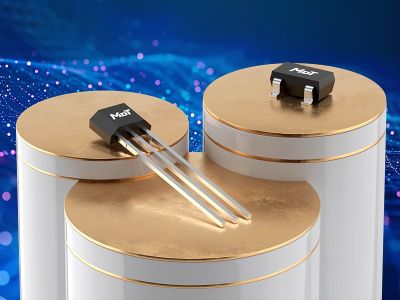

The TMR1262 is a bipolar open-drain magnetic switch sensor that integrates TMR sensors with CMOS circuitry, converting magnetic field strength into digital voltage outputs. The TMR1262 achieves a magnetic signal response frequency of 50 Hz with an ultra-low static supply current of 200 nA, making it suitable for low-power applications. Compared to Hall and AMR sensors operating in power-cycling modes, the TMR1262 offers higher response frequency and faster response time at a similar power level across wide operating temperature range. The TMR1262 operates over a supply voltage range of 1.8 V to 5.5 V with excellent temperature stability. It is available in SOT23-3 (TMR1262S) and TO92S (TMR1262T) packages, providing flexible integration options. |  SOT23-3 TO92S |
Features and Benefits | |
 Tunneling magnetoresistance (TMR) technology | Low power consumption: supply current 200 nA |
| Frequency response: 50 Hz | Bipolar latching operation |
| CMOS push-pull output | High sensitivity |
| Wide range supply voltages: 1.8 V to 5.5 V | Excellent temperature stability |
| High tolerance to external magnetic field interference | RoHS & REACH compliant |
Applications | |
| Utility meters: water, gas, and heat meters | Solid-state switch |
| Speed sensing | Linear and rotation position sensing |
