TMR2152 Tunneling Magnetoresistance TMR Linear Magnetic Sensor

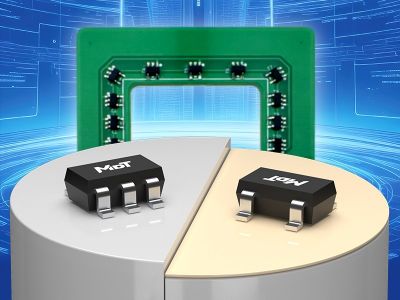

  • TMR2152-big
Part No.: TMR2152
Bridge Configuration: Full bridge
Supply Voltage(V): 0.5 to 7
Sensitivity (mV/V/Gs): 0.2
Resistance (kΩ): 7
Linear Range (Gs): ±500
Sensing Direction: X-axis
Hysteresis (Gs): 5
Noise (nT/rt(Hz) @1Hz): /
Package: SOT23-5

Description

The TMR2152 adopts a unique push-pull Wheatstone full-bridge structure utilizing four unshielded high-sensitivity TMR sensor elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive direction. The TMR2152 delivers excellent performance and is available in an SOT23-5 package.

SOT23-5SOT23-5

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconLarge dynamic range: ±500 Gs
iconNon-linearity: 1%FSiconExcellent temperature stability
icon RoHS and REACH compliant

Applications

iconMagnetometericonCurrent sensor
iconPosition sensoriconAngel sensor
