TMR2153 Tunneling Magnetoresistance TMR Linear Magnetic Sensor

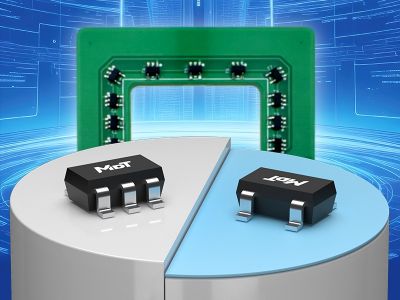

  • TMR2153-big
Part No.: TMR2153
Bridge Configuration: Full bridge
Supply Voltage(V): 0.5 to 7
Sensitivity (mV/V/Gs): 0.5
Resistance (kΩ): 100
Linear Range (Gs): ±200
Sensing Direction: X-axis
Hysteresis (Gs): 5
Noise (nT/rt(Hz) @1Hz): /
Package: SOT23-5

Description

The TMR2153 adopts a unique push-pull Wheatstone full-bridge structure utilizing four unshielded high-sensitivity TMR sensor elements. This Wheatstone full bridge provides differential voltage output with excellent temperature stability when the applied magnetic field changes parallel to the sensor’s sensitive direction. The TMR2153 delivers excellent performance and is available in an SOT23-5 package.

SOT23-5SOT23-5

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconLarge dynamic range: ±200 Gs
iconNon-linearity: 1%FSiconExcellent temperature stability
icon RoHS and REACH compliant

Applications

iconMagnetometericonCurrent sensor
iconPosition sensoriconAngel sensor
