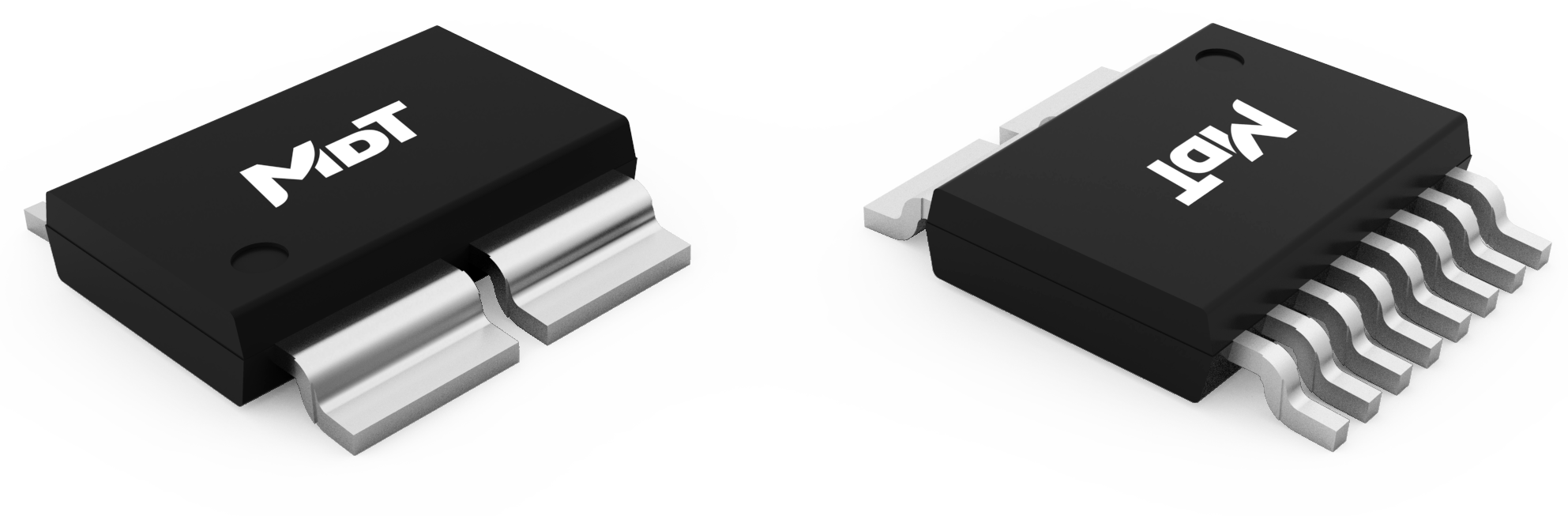

TMR7610-C Current Sensor IC
  • TMR7610-C-big
Part No.：TMR7610-C
Nominal current(A)：/
Current range(A)：±50~±200
Voltage(V)：3.3/5
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±1~±3
Linearity(%FS)：0.5
Bandwidth(kHz). -3dB：600
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：0.65
Operating Temperature(℃)：-40~+125

Description

The TMR7610-C series current sensor IC operate on the principle of electromagnetic induction with high sensitivity, high signal-to-noise ratio tunneling magnetoresistance (TMR) sensors. With a temperature drift compensation circuit and galvanic isolation between the primary and secondary sides, it can accurately arbitrary current signal including direct current (DC), alternating current (AC), and pulses.

TMR7610-C

Features and Benefits

icon10-pin SOPW packageiconHigh sensitivity
iconLow noiseiconHigh bandwidth, fast response
iconExcellent temperature stabilityiconRoHS and REACH compliant

Applications

iconFrequency converter current detectioniconMotor drive
iconPhotovoltaic invertericonOverload protection
iconPower supply monitoring
