TMR7555-E Board Mount Precision Current Sensor
  • TMR7555-E-big
Part No.：TMR7555-E
Nominal current(A)：100 to 200
Current range(A)：±150 to ±450
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.2/±1
Linearity(%FS)：0.15
Bandwidth(kHz). -3dB：200
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7555-E is a closed loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

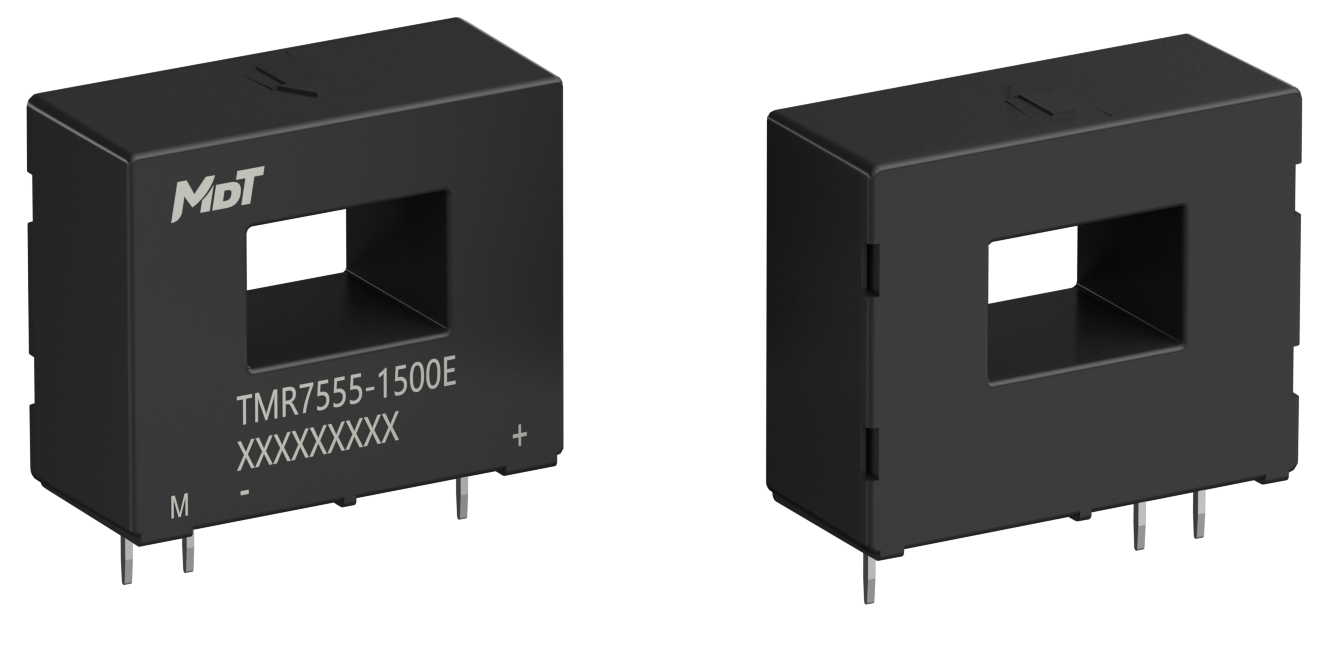

tmr7555-eTMR7555-E

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconLow temperature drifticonLight weight design
iconGalvanic isolationiconHigh immunity to external interference
iconRoHS & REACH compliant

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconTelecom power supplies
iconComputer numerical control system (CNC)iconInverter
