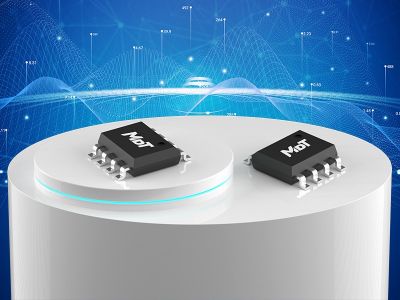

TMR3102P TMR Magnetic Rotary Encoder
Back
Part No.:TMR3102P
Previous Part No.:
Type:Biaxial TMR Angle Sensor
Supply Voltage(V):3.3~5 V
Angle Measurement(°):360°
Resistance(kΩ):/
PP (mV/V):/
Field Operating Range:200~800 Gs
Angular Error:±1°
Output:SPI/PWM/Analog
Package:SOP8
Lead Time:In stock
Datasheet:Download
  • TMR3102P

General Description: The TMR3102P is a contactless, high-precision, and high-speed magnetic rotary encoder sensor, which integrated with tunneling magnetoresistance (TMR) sensors and CMOS digital signal processing circuitry.

The TMR3102P senses the single pole-pair magnet rotation above the chip by TMR sensors, collects the rotating magnetic field signal, transmits it to the digitalprocessing unit, and calculates the rotation angle. TMR3102P outputs 12-bit absolute position signal through SPI communication protocol. At the same time, it is able to output analog and PWM signals, with rotational speed up to 20,000 RPM.


Features and Benefits: (1)Tunneling magnetoresistance (TMR) technology;(2)Contactless measurement;(3)Available in Analog and PWM interfaces output;(4)12-bit absolute position output in SPI mode;(5)Programmable zero position;(6)Angular repeatability <±0.2°;(7)Speeds up to 20,000 RPM;(8)Adaptive supply voltage: 3.3 V to 5 V.


Applications:(1)Contactless angular position measurement;(2)Brushless motor position sensing;(3)Rotary speed sensing;(4)Rotary angular sensing.
