TMR26XX TMR Linear Sensor
Part No.:TMR26XX
Previous Part No.:
Bridge Configuration:/
Supply Voltage:3.3~5V
Sensitivity (mV/V/Oe):2.7 ~ 80
Resistance (kΩ):/
Saturation Field (Oe):±25 ~ ±500
Sensing Direction:/
Hysteresis (Oe): 0.1 ~ 0.5
Noise (nT/rt(Hz) @1Hz):/
Form Factor:SOP8
Lead Time:In stock
  • TMR26XX

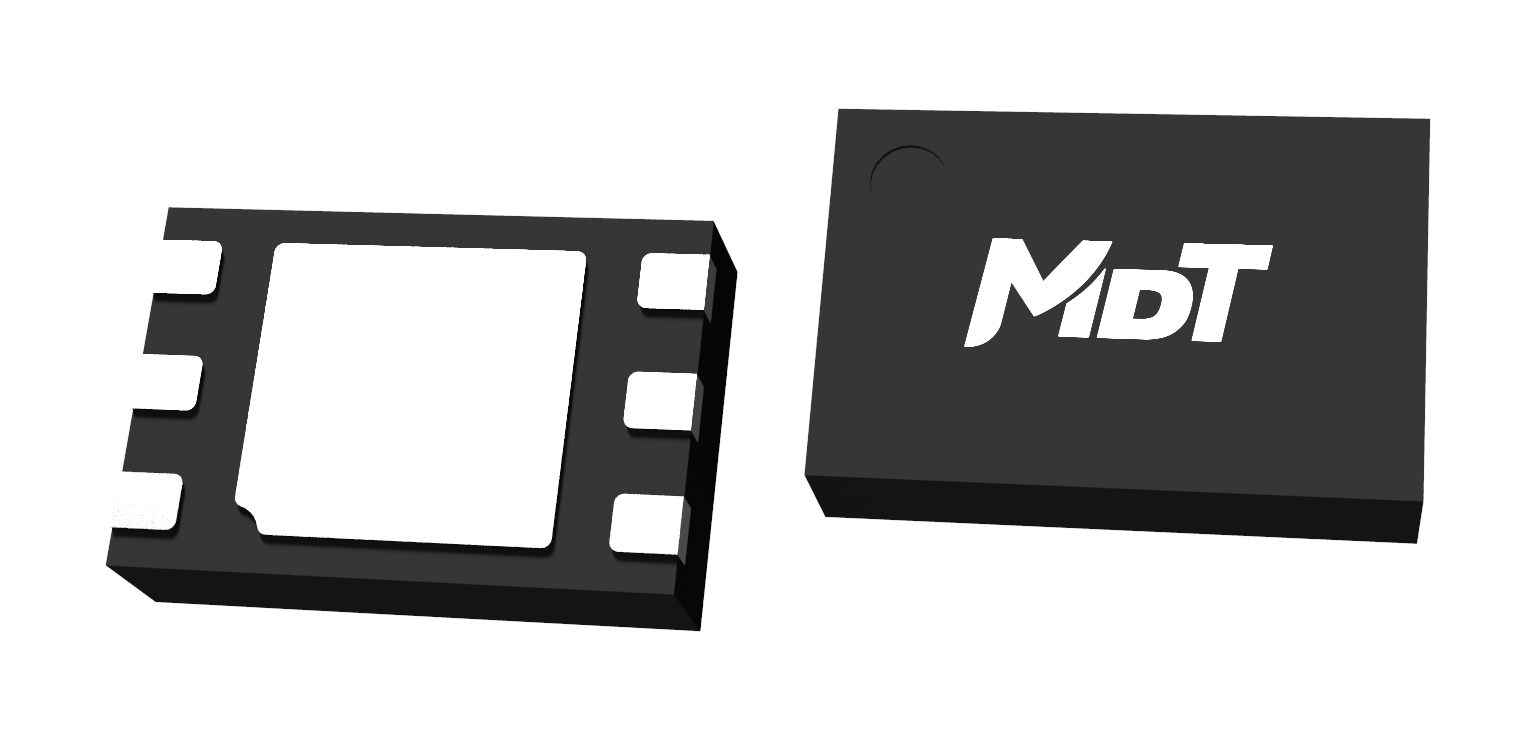

General Description:The TMR26XX series of TMR linear sensors are linear magnetic field sensors that integrate Tunneling Magnetoresistance (TMR) sensors with built-in signal conditioning circuitry. The signal conditioning circuitry performs calibration and correction to the TMR sensor parameters including offset, sensitivity, measurement range and linearity, with adjustable gains to normalize its output signal to a full-scale voltage signal. In addition to TMR technology’s benefits of high resolution, high signal-to-noise ratio, and low-power, TMR26XX features excellent uniformity of device sensitivity, full-scale voltage output and small offset drift, offering enhanced flexibility and versatility for the design and application of TMR-based magnetic sensor systems. The TMR26XX linear sensors are available in an SOP8 (6mm×5mm×1.5mm) package.

Features and Benefit:(1)Tunneling Magnetoresistance (TMR) technology;(2)High uniformity in sensitivity with small offset drift;(3)Outstanding temperature stability;(4)Low Hysteresis;(5)Full-scale linear output under 3.3/5.0V voltage supply;(6)No need for set/reset signal.

Applications:(1)Magnetic field measurement;(2)Current sensors;(3)Position sensors.
