TMR9082 High sensitivity Low Noise TMR Magnetic Linear Sensor
  • TMR9082-SOP8-EN
Part No.: TMR9082
Bridge Configuration: Full bridge
Supply Voltage(V): 1V
Sensitivity (mV/V/Gs): 100
Resistance (kΩ): 30
Saturation Field (Gs): ±4
Sensing Direction: X-axis
Hysteresis (Gs): 0.03
Noise (nT/rt(Hz) @1Hz): 0.25
Package: SOP8
Lead Time: In stock

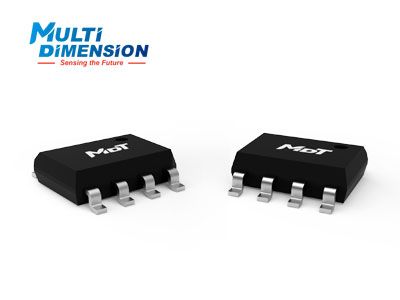

The TMR9082 linear sensor utilizes a unique push-pull Wheatstone bridges composed of four highly sensitive TMR sensor elements. With low noise, high sensitivity, and a compact package, the TMR9082 is designed for detecting weak magnetic fields such as geomagnetic or magnetic flux leakage. TMR9082 is available in SOP8 package.


Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity (~100 mV/V/Gs)
iconLow noise spectral density: 250 pT/rt(Hz)@1HziconLow power consumption
iconExcellent thermal stabilityiconLow hysteresis
iconWide range supply voltages rangeiconNo need for set/reset pulse circuit
iconRoHS and REACH compliant


iconWeak magnetic field sensingiconCurrent sensor
iconPosition and displacement sensoriconBiomedical sensor
iconMagnetic communication
  • New Products
  • TMR9082

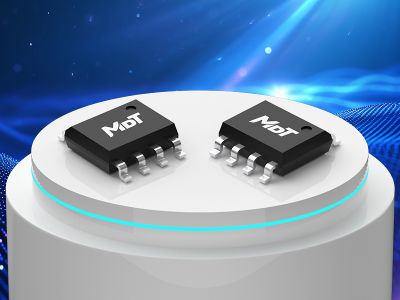

    High sensitivity Low Noise TMR Magnetic Linear Sensor
