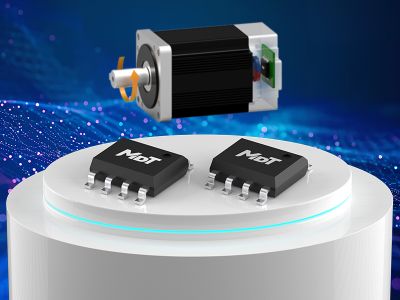

TMR3109 23-bit TMR Magnetic Rotary Encoder
  • TMR3109-big
Part No.: TMR3109
Type: Digital Series
Supply Voltage(V): 3.3 to 5
Angle Measurement(°): 360°
Resistance(kΩ): /
PP (mV/V): /
Field Operating Range(Gs): 200 to 800
Angular Error: < ±0.05°
Output: SPI
Package: SOP8
Lead Time: In stock


The TMR3109 is a contactless, high-precision, and high-speed magnetic rotary encoder sensor, which integrated with tunneling magnetoresistance (TMR) sensors and CMOS digital signal processing circuitry.

The TMR3109 senses the single pole-pair magnet rotation above the chip by TMR sensors, collects the rotating magnetic field signal, transmits it to the digital processing unit, and calculates the rotation angle.

The TMR3109 supports 3-wire and 4-wire SPI working modes, allowing the client MCU to read 23-bit absolute position information through the SPI protocol.

Auto-calibration is available for the TMR3109 to compensate non-linearities caused by imperfect installation.


Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconSupply voltage: 3.3 V to 5 V
iconSupports 0° to 360° absolute angle detectioniconSupply current: 10 mA (typical)
iconOn and off axis measurementsiconAvailable in SPI interface
iconAngular output delay < 2 μsiconAngular repeatability < ±0.05°
iconSpeeds up to 40,000 RPMiconAuto-calibration function
icon Integrated automatic gain calibration functioniconRoHS and REACH compliant


iconContactless angular position measurementiconBrushless motor position sensing
iconRotary speed sensingiconClose loop stepper system
iconServo encoder
