TMR2584 Z Axis TMR Linear Magnetic Sensor
  • TMR2584-big
Part No.: TMR2584
Bridge Configuration: Full bridge
Supply Voltage(V): 1 to 7
Sensitivity (mV/V/Gs): 0.5
Resistance (kΩ): 3
Saturation Field (Gs): ±300
Sensing Direction: Z-axis
Hysteresis (Gs): 2
Noise (nT/rt(Hz) @1Hz): /
Package: SOT23-5 SSIP4 TO94
Lead Time: In stock


The TMR2584 linear magnetic sensor chip utilizes a unique push-pull Wheatstone bridge structure design, comprising four unshielded high-sensitivity TMR sensor elements capable of sensing a magnetic field perpendicular to the chip’s surface. As the external magnetic field changes along the direction perpendicular to the chip’s surface, the Wheatstone bridge provides a differential voltage output. Within the range of -40 °C to +125 °C, the sensitivity and offset voltage of the TMR2584 can be maintained at a stable level.

The TMR2584 is available in three packaging forms: TO94, SSIP4, SOT23-5 with P/N of TMR2584T, TMR2584B, and TMR2584S.

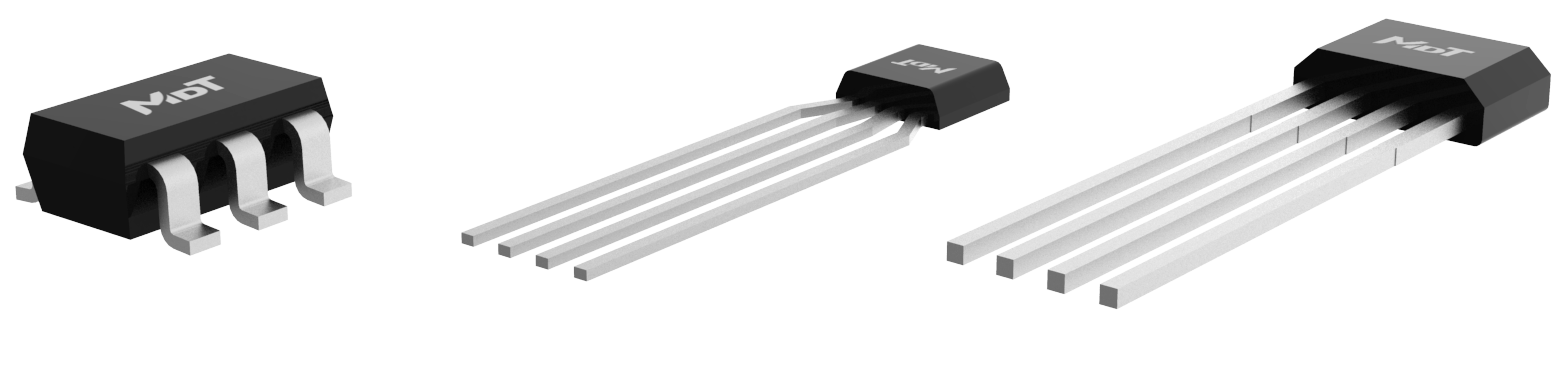

sot23-5、to94、ssip4SOT23-5              SSIP4                 TO94

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconHigh sensitivity
iconLow power consumptioniconExcellent temperature stability
iconLow hysteresisiconWide operating voltage range
iconRoHS & REACH compliant


iconMagnetometericonCurrent sensor
iconPosition sensoriconMotor drives
