AMR3013P AMR Angle Sensor
Back
Part No.:AMR3013P
Previous Part No.:
Type:Biaxial AMR Angle Sensor
Supply Voltage:0~18 V
Angle Measurement:180°
Resistance:4.2KΩ
PP (mV/V):13
Field Operating Range:100~400 Oe
Angular Error:±0.1°
Output:Differential
Form Factor:SOP8
Lead Time:In stock
  • AMR3013P

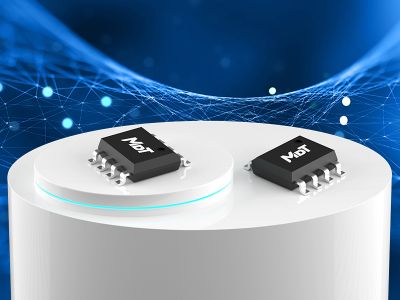

General Description:The output voltage of the AMR3013P AMR angle sensor is proportional to the sine or cosine functions of two times of the angle -sin(2α) and cos(2α)-of a magnetic field applied parallel to the surface of the sensor, which can be provided by a small magnet positioned above the device. The AMR3013P includes two Wheatstone bridges, which can be configured to output sine and cosine functions respectively. Each bridge includes four AMR sensor elements in a push-pull arrangement to produce a peak-to-peak signal at 2.6% of the supply voltage. Additionally, the unique AMR Wheatstone bridge technology accurately compensates the output against changes in ambient temperature. This sensor is assembled in a compact SOP8 package.


Features and Benefits:(1)Anisotropy of magnetoresistance (AMR) Technology;(2)Compatible with Wide Range of Supply Voltages;(3)Wide Airgap Tolerance;(4)Excellent Thermal Stability;(5)Very Low Hysteresis;(6)Compact Package.


Applications:(1)Rotary Position Sensors;(2)Rotary Encoders;(3)Contactless Potentiometers;(4)Valve Position Sensors;(5)Knob Position Sensors.
