TMR3004 Biaxial TMR Angle Sensor
Back
Part No.:TMR3004
Previous Part No.:
Type:Biaxial TMR Angle Sensor
Supply Voltage:0~7 V
Angle Measurement:360°
Resistance:7.5KΩ
PP (mV/V):1000
Field Operating Range:150~1100 Oe
Angular Error:±1.5°
Output:Differential

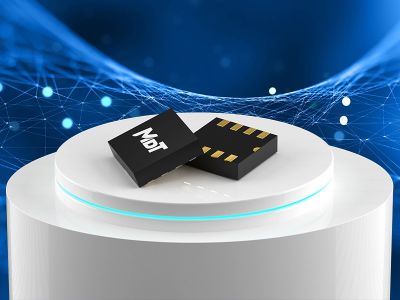

Form Factor:LGA8L(3×3×0.9)
Lead Time:In stock
Datasheet:
  • TMR3004

General Description: The output voltages of the dual-axis TMR3004 TMR high-field angle sensor are proportional to the sine and cosine of the angle of a magnetic field applied parallel to the surface of the TMR3004. These sine and cosine signals are provided by two orthogonal full bridge TMR angle sensors. Each full bridge TMR angle sensor includes four unique high-field TMR sensor arms connected in a push-pull arrangement to produce a best-in-class peak-to-peak signal as large as 90% of the supply voltage, eliminating the need for amplification in many applications, while maintaining low error as the magnetic field is varied over a range of 1 kOe. Additionally, the TMR full bridge technology accurately compensates the output against changes in ambient temperature. This sensor is assembled in a compact LGA8 package of 3.0 mm×3.0 mm×0.9 mm.


Features and Benefits: (1)High Magnetic Field Tunneling Magnetoresistance (TMR) Technology;(2)Wide 1 kOe Operating Range Provides Highest Air Gap Insensitivity;(3)Excellent Immunity to Environmental Magnetic Disturbance;(4)Large Output Signal Without Amplification;(5)High Accuracy Dual-Axis 360° Angle Measurement;(6)Compatible with Wide Range of Supply Voltages;(7)Fast Response for High-Speed Applications;(8)Excellent Thermal Stability;(9)Compact LGA Package


Applications:(1)Rotary Position Sensors;(2)Rotary Encoders;(3)Contactless Potentiometers;(4)Valve Position Sensors;(5)Knob Position Sensors

lga8l(3x3x0.9)
