TMR3002 Biaxial TMR Angle Sensor
Back
Part No.:TMR3002
Previous Part No.:MMA253F
Type:Biaxial TMR Angle Sensor
Supply Voltage:0~7 V
Angle Measurement:360°
Resistance:280KΩ
PP (mV/V):1000
Field Operating Range:70~400 Oe
Angular Error:±2.5°
Output:Differential
Form Factor:LGA8L(3×3×0.9)
Lead Time:In stock
  • TMR3002

General Description:The dual-axis output voltages of the TMR3002 TMR angle sensor are proportional to the sine and cosine of the angle of a magnetic field applied parallel to the surface of the sensor, which can be provided by a small magnet positioned above the device. The TMR3002 includes two Wheatstone bridges, which can be configured to output sine and cosine functions respectively. Each bridge includes four TMR sensor elements in a push-pull arrangement to produce a best-in-class peak-to-peak signal as large as 100% of the supply voltage, eliminating the need for amplification in many applications. Additionally, the unique TMR Wheatstone bridge technology accurately compensates the output against changes in ambient temperature. This sensor is assembled in a compact LGA8 package of 3.0 mm × 3.0 mm × 0.9 mm.



Features and Benefits:(1)Tunneling Magnetoresistance (TMR) Technology;(2)Large Output Signal without Amplification;(3)Dual-Axis 360° Angle Measurement;(4)Compatible with Wide Range of Supply Voltages;(5)High Resistance for Low Power Consumption;(6)Wide Air-Gap Tolerance;(7)Excellent Thermal Stability;(8)Compact LGA Package.



Applications:(1)Rotary Position Sensors;(2)Rotary Encoders;(3)Contactless Potentiometers;(4)Valve Position Sensors;(5)Knob Position Sensors.

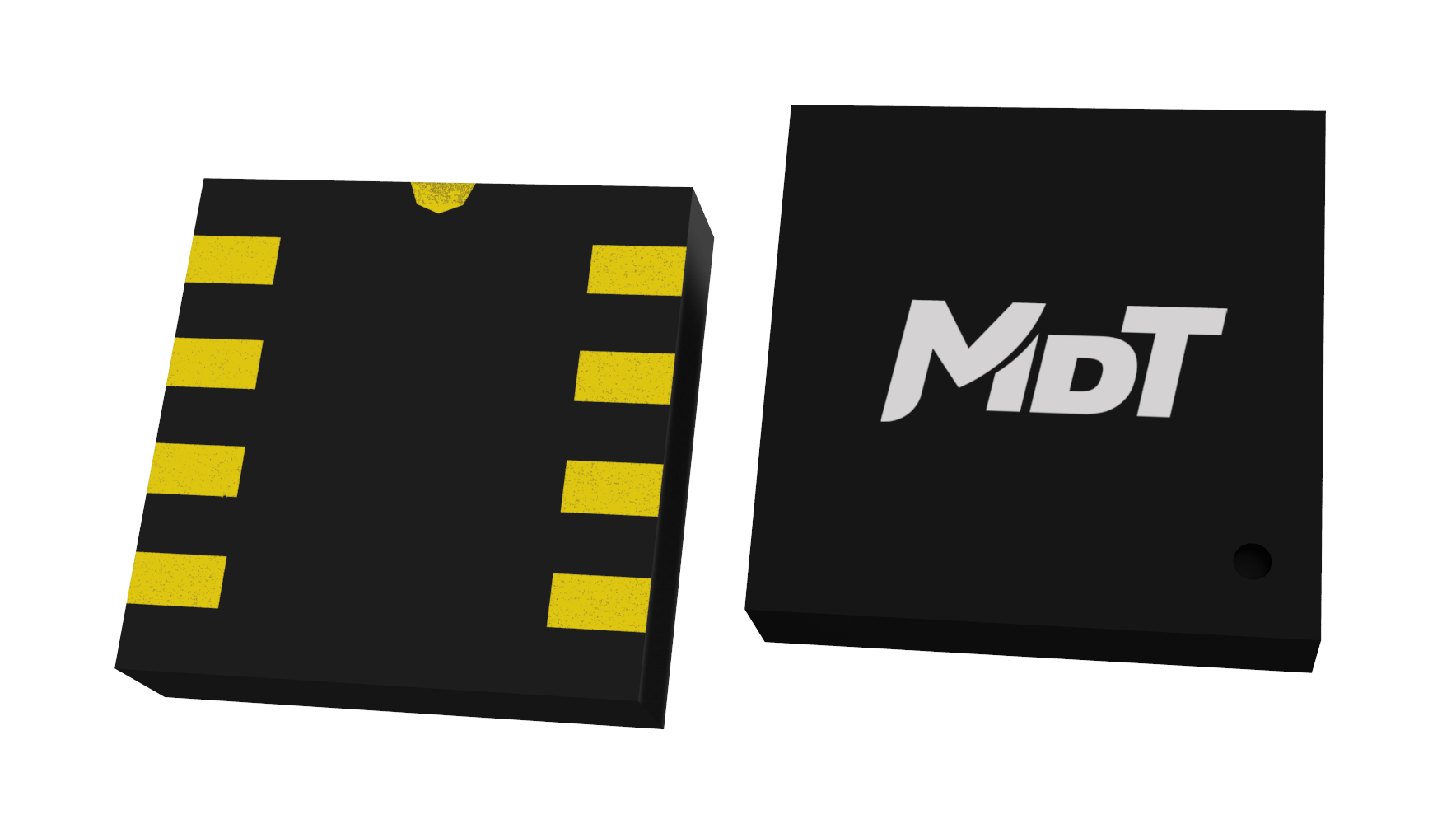

lga8l(3x3x0.9)
