AMR3003L AMR Angle Sensor
Part No.:AMR3003L
Previous Part No.:
Type:AMR Angle Sensor
Supply Voltage:0~18 V
Angle Measurement:180°
PP (mV/V):16
Field Operating Range:>200 Oe
Angular Error:±0.1°

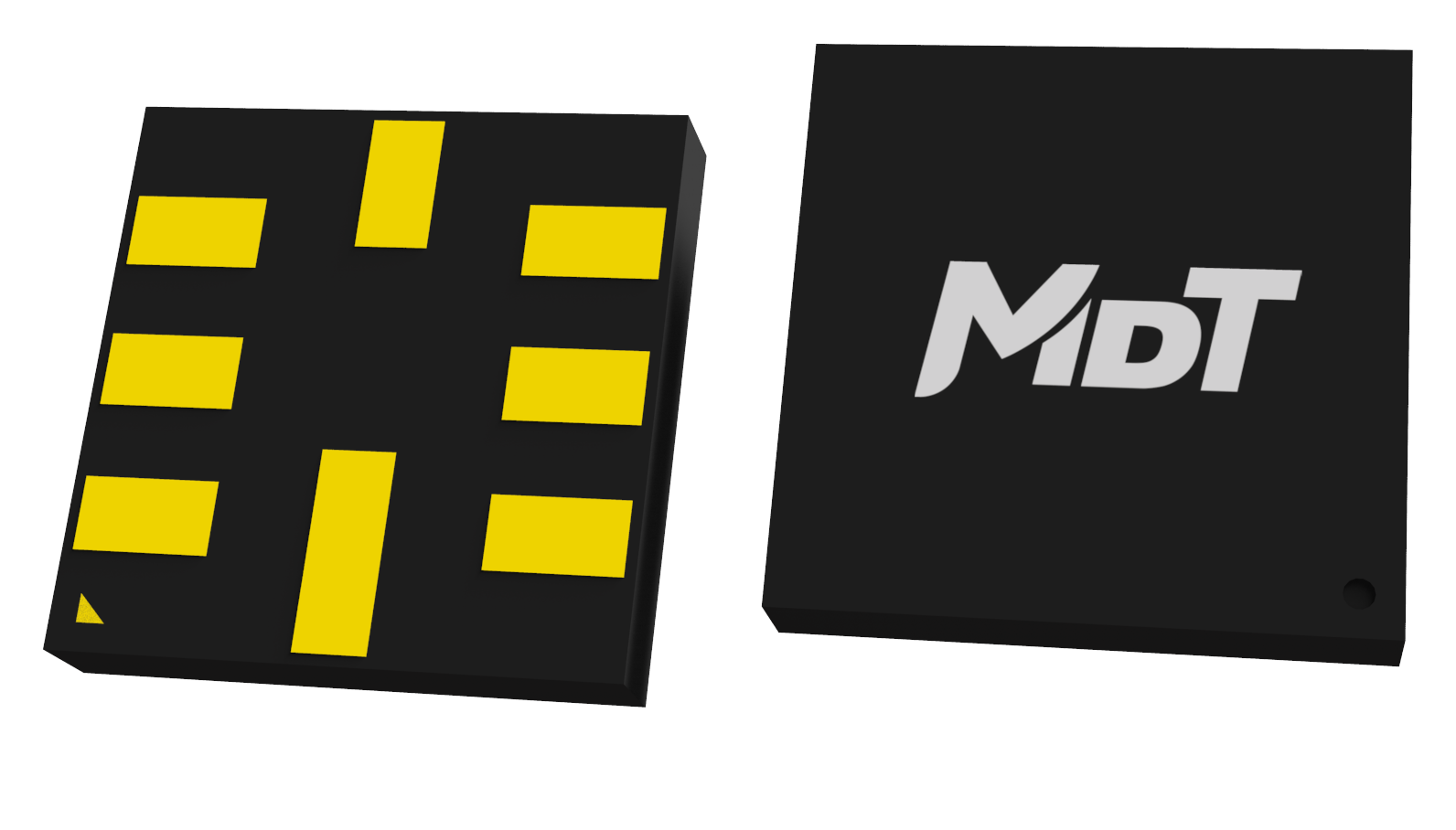

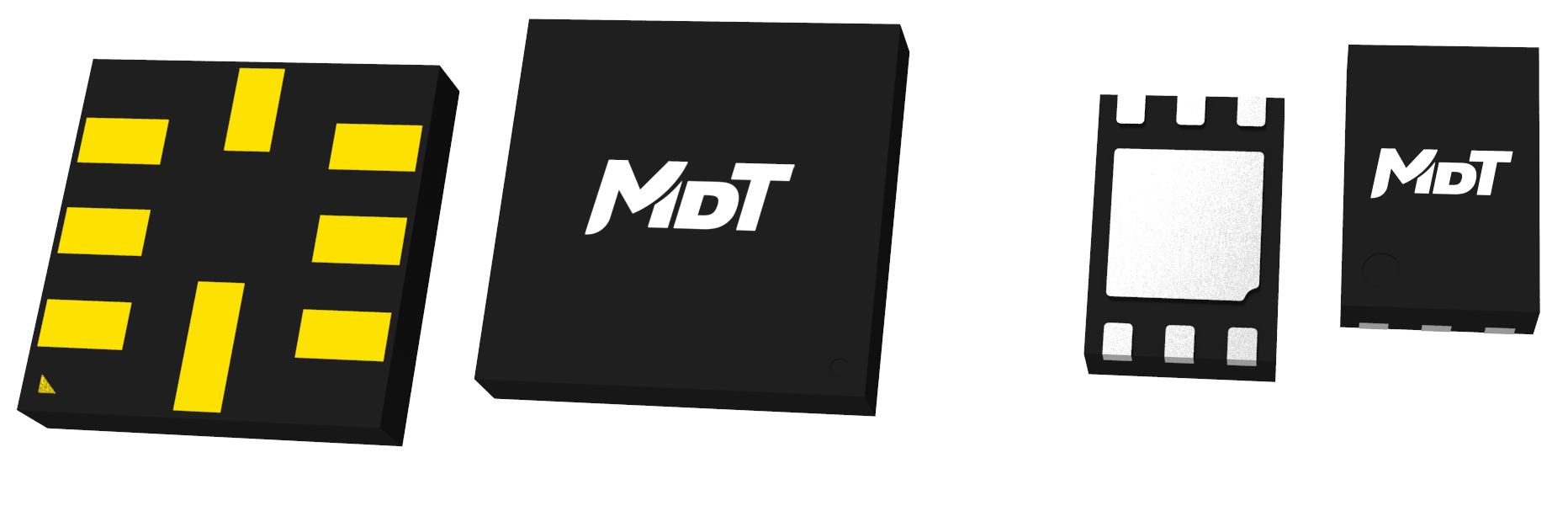

Form Factor:LGA8L(5×5×0.9)
Lead Time:In stock
  • AMR3003L

General Description: The output voltage of the AMR3003L AMR angle sensor is proportional to the sine or cosine functions of two times of the angle – sin(2α) and cos(2α) – of a magnetic field applied parallel to the surface of the sensor, which can be provided by a small magnet positioned above the device. The AMR3003L includes two Wheatstone bridges, which can be configured to output sine and cosine functions respectively. Each bridge includes four AMR sensor elements in a push-pull arrangement to produce a peak-to-peak signal at 2.6% of the supply voltage. Additionally, the unique AMR Wheatstone bridge technology accurately compensates the output against changes in ambient temperature. This sensor is assembled in a compact LGA package.

Features and Benefits: (1)Anisotropy of magnetoresistance (AMR) Technology;(2)Compatible with Wide Range of Supply Voltages;(3)Wide Airgap Tolerance;(4)Excellent Thermal Stability;(5)Very Low Hysteresis;(6)Compact Package.

Applications:(1)Rotary Position Sensors;(2)Rotary Encoders;(3)Contactless Potentiometers;(4)Valve Position Sensors;(5)Knob Position Sensors



The information provided herein by MultiDimension Technology Co., Ltd. (hereinafter MultiDimension) is believed to be accurate and reliable. Publication neither conveys nor implies any license under patent or other industrial or intellectual property rights. MultiDimension reserves the right to make changes to product specifications for the purpose of improving product quality, reliability, and functionality. MultiDimension does not assume any liability arising out of the application and use of its products. MultiDimension’s customers using or selling this product for use in appliances, devices, or systems where malfunction can reasonably be expected to result in personal injury do so at their own risk and agree to fully indemnify MultiDimension for any damages resulting from such applications.
