TMR7308-B Board Mount Precision Current Sensor

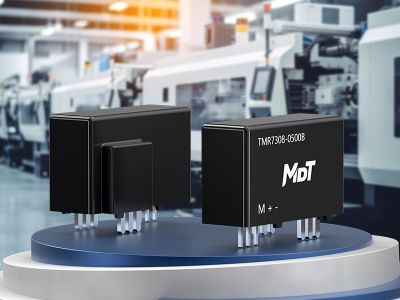

  • TMR7308-B-big
Part No.：TMR7308-B
Nominal current(A)：50/100
Current range(A)：±150/±280
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.5 to ±1
Linearity(%FS)：0.1
Offset(mV)：±0.15 to ±0.3
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：1
Operating Temperature(℃)：-40 to +85

Description

TMR7308-B is a closed loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

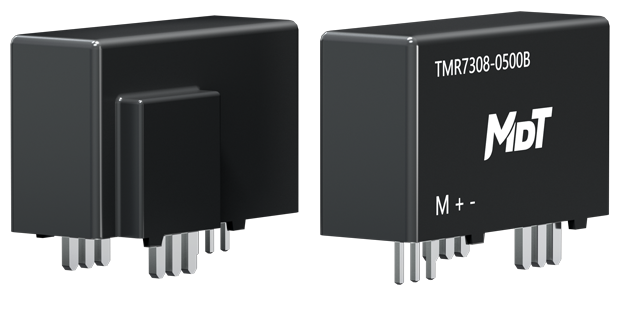

tmr7308-bTMR7308-B

Features and Benefits

iconLow temperature coefficienticonGalvanic isolation
iconHigh immunity to external interferenceiconExcellent linearity
iconHigh accuracyiconLight weight design
iconRoHS & REACH compliant

Applications

iconDC motor drivesiconUninterruptible power supplies (UPS)
iconInverter and variable frequency drives (VFD)iconInverter
iconTelecom power suppliesiconComputer numerical control system (CNC)
