TMR6218XA TMR Magnetic Pattern Recognition Sensor
Back
Part No.:TMR6218XA
Previous Part No.:
Channels:18 Channel
Structure:
Output:Analog
Sensing Length:180mm

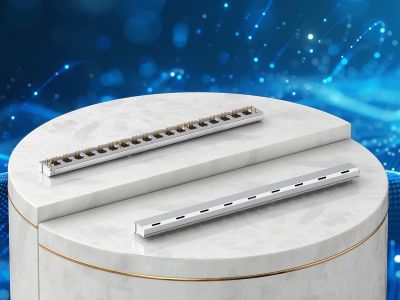

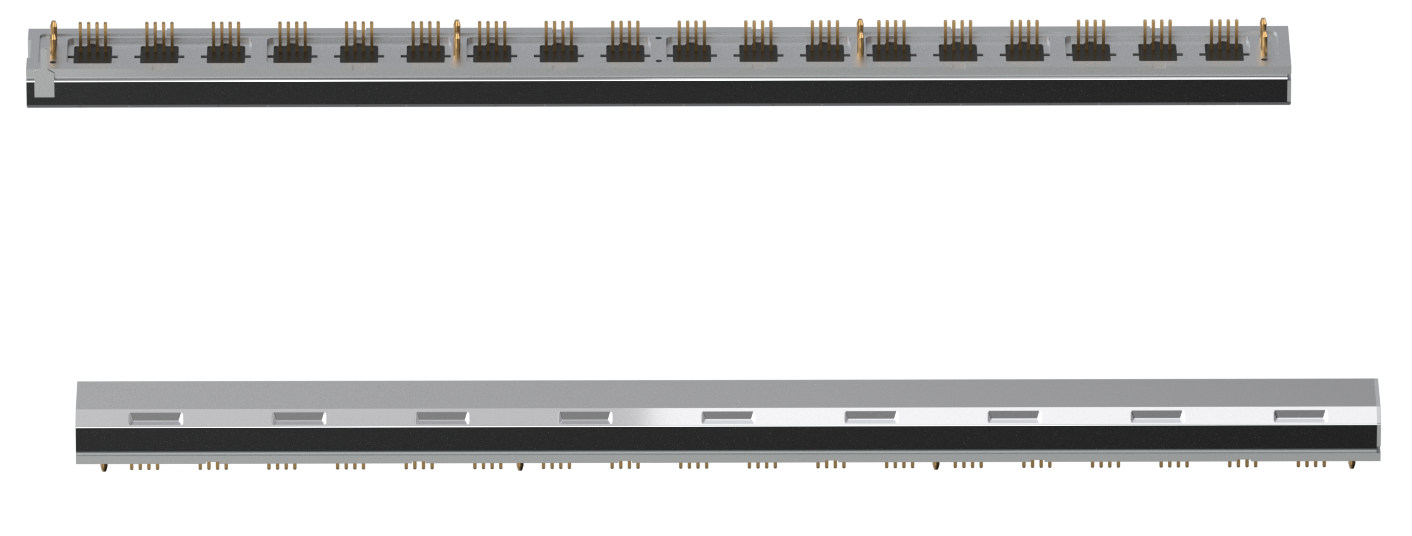

  • TMR6218XA

General Description:The TMR6218XA is a new type of 18 channels magnetic pattern recognition sensor with high consistency, high sensitivity and high signal-to-noise ratio performance, stable magnetization and detection for high coercive force magnetic materials, it is used for detecting full-scale paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. The TMR6218XA consists of TMR magneto-resistance sensor, high-quality magnet, high-strength metal base and durable non-magnetic stainless steel cover; The TMR6218XA notch pitch is 21mm.


Features and Benefits:(1)Stable magnetization and detection for high coercive force magnetic materials;(2)High sensitivity and excellent gap performances;(3)Sensitivity matching of each channel;(4)Output voltage is independent of scanning speed;(5)Differential output, high CMRR performance;(6)Durable metal case, suitable for heavy load situations;(7)10mm x 18ch detection width, no non-detection area.



Applications:(1)Bill counter and validator;(2)Bill sorter;(3)ATM;(4)Magnetic detection of the paper bills
