TMR-FMD8133ULNV Single-axis, Low-noise, High-Transient-Response Magnetic Sensor
  • FMD8133ULNV-big
Part No.：TMR-FMD8133ULNV
Sensing Direction：Single axis
Frequency Response(-3dB)：0.1 to 10kHz
Supply Voltage(V)：3.3
Measuring range(μT)：±100
Sensitivity(mV/μT)：50000
Magnetic Field Spectral Noise Density(pT/√Hz@1Hz)：50
Linearity error(%FS)：/

Description

The TMR-FMD8133ULNV single-axis, low-noise, high-transient-response magnetic sensor uses a miniaturized, ultra-low-noise TMR sensor chip—independently developed and manufactured by Multi-Dimension Technology—as its sensing element. It employs magnetic modulation technology to suppress 1/f noise, dual-T detection technology to improve the detection of very low-frequency weak magnetic signals, effectively suppressing high-frequency noise and improving the signal-to-noise ratio of weak magnetic signals, thereby achieving high transient response and high-resolution detection of weak magnetic signals. The passive detection range for a non-magnetized paper clip (Comix B3500) can reach up to 25 cm.

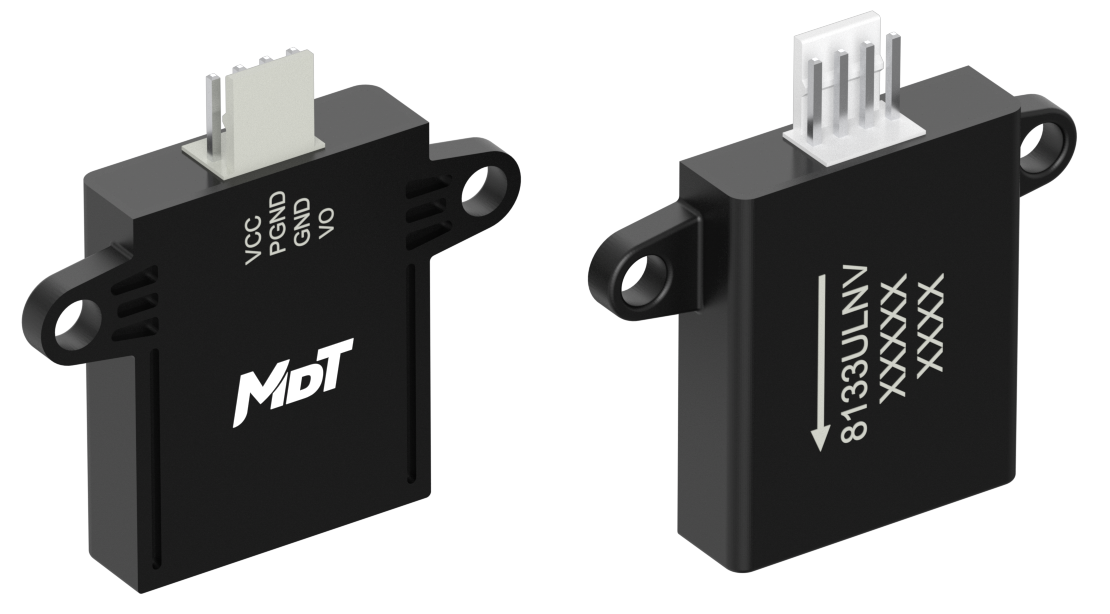

fmd8133ulnvTMR-FMD8133ULNV

Features and Benefits

iconHigh-resolution measurementsiconMaximum saturation field: ~ ±600 μT
iconHighly integrated design, easy secondary integrationiconBroad background magnetic field: ~ ±300 μT
iconStrong low-frequency dynamic weak magnetic field detection capability

Applications

iconSecurity systemiconMagnetic material detection
iconTraffic flow control
