Description | |

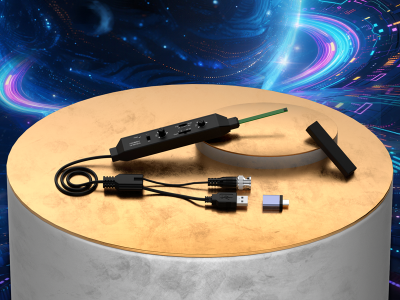

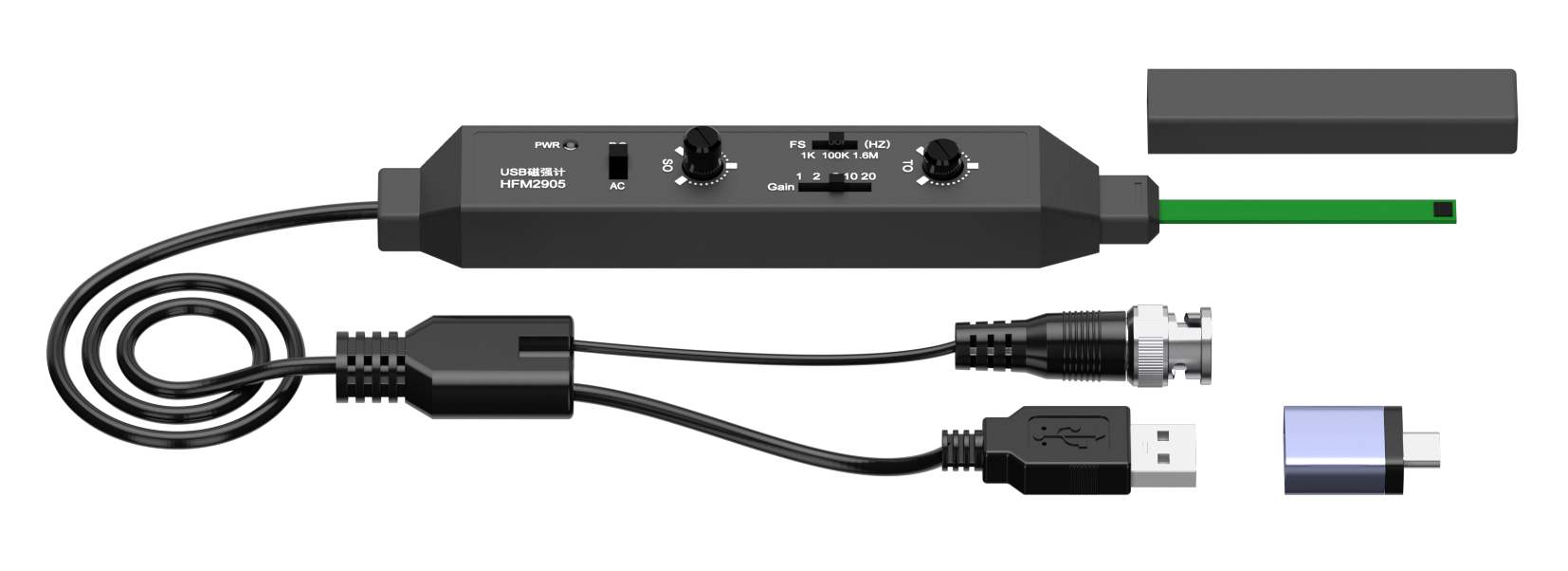

The HFM2905 is a single-axis, analog, high-frequency magnetometer that measures magnetic-field signals aligned with the probe axis. It covers DC to 1.6 MHz magnetic-field bandwidth and supports AC field amplitudes from 0.1 Gs to 2 Gs. To simplify bench characterization, HFM2905 combines the magnetic sensor, on-board signal conditioning, USB +5V power input, and a BNC analog voltage output. The BNC interface is intended for direct connection to an oscilloscope or DAQ, enabling immediate visualization of the output waveform and straightforward extraction of magnetic-field amplitude and frequency. |  HFM2905 |
Features and Benefits | |
 Tunneling magnetoresistance (TMR) technology | Magnetic-field amplitude: 0.1 Gs to 2 Gs |
| Manually adjustable TMR sensor output voltage VOFFSET | USB bus powered |
| BNC signal output interface | Manually selectable DC/AC output mode |
| Manually adjustable DC output signal VOFFSET level | Frequency response: DC to 1.6 MHz |
| Manually adjustable output gain factors (1×,2×,5×,10×,20×) | RoHS and REACH compliant |
| Manually adjustable signal bandwidth ranges (~1kHz,~100kHz,~1.6MHz) | |
Applications | |
| Laboratory measurement of AC magnetic-field
signals | Automated data acquisition and control |
| Materials research | Non-destructive testing |
| Education | Hobbyist / DIY projects |
| Oscilloscope probe | |
