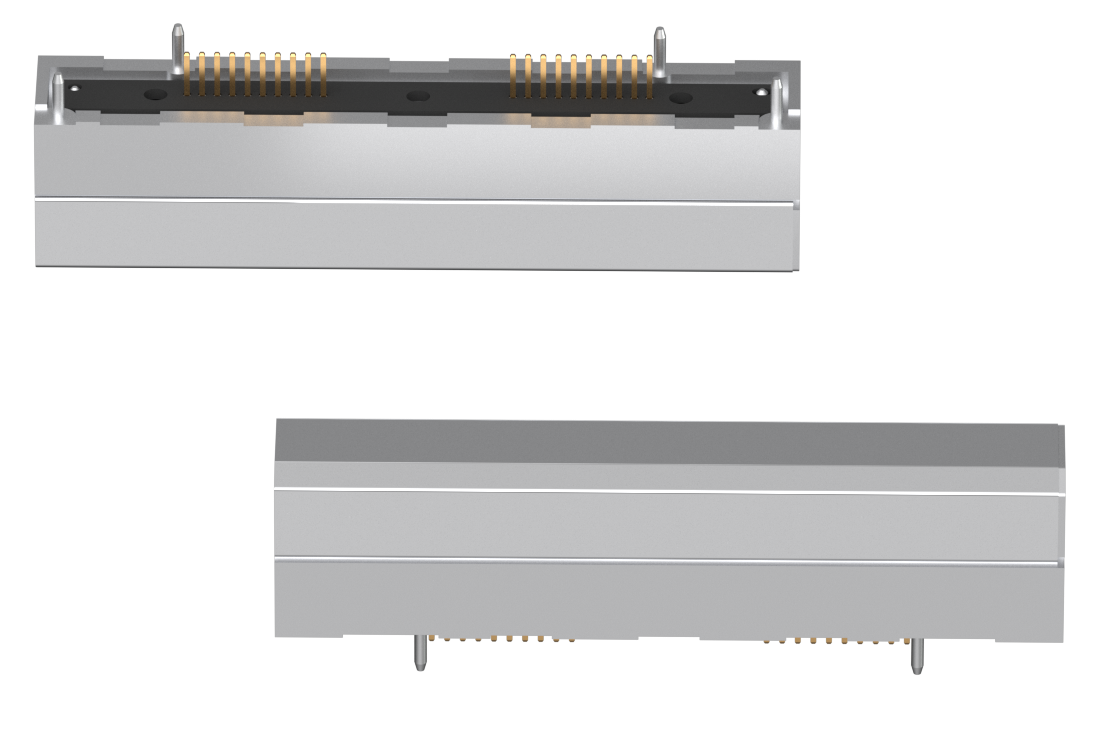

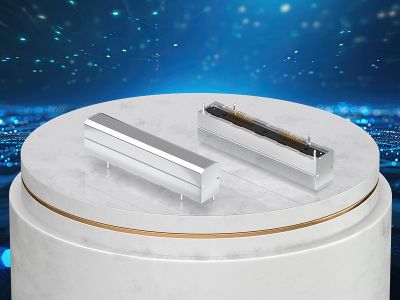

TMR6306 100DPI 54mm TMR Magnetic Image Sensor
Back
Part No.:TMR6306
Previous Part No.:
Channels:216 Channel
Structure:
Output:Serial Analog
Sensing Length:54mm
  • TMR6306

General Description:he TMR6306 is a 216pixels, 100DPI magnetic image sensor (MIS) module. It integrates proprietary TMR magneto-resistance sensor, high-quality magnet to provide high sensitivity performance. The TMR6306 module is designed for wide coverage paper bills, bank notes and security documents with magnetic materials and is suitable for scanning width up to 54mm. It features a 1-channel analog output to achieve a scanning rate of 50usec/line @ 5MHz pixel rate; Factory calibrated sensitivity of each pixel.


Features and Benefits:(1)TMR sensor and magnet are integrated in one module;(2)100DPI resolution, 54mm detection width with 216 pixels;(3)1-channel analog output;(4)50usec/line scanning speed;(5)Compact size: L64mm x W11.5mm x H15.2mm;(6)Built-in signal conditioner for each pixel;(7)Built-in sensitivity calibration in factory;(8)3.3V power supply, 1.65V reference voltage output;(9)No built-in magnet is available: TMR6306N.


Applications:(1)Currency Verification;(2)Magnetic Document Scanning;(3)Non Destructive Testing.
