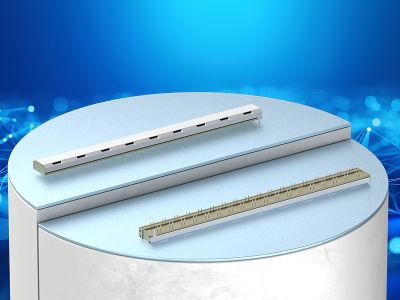

TMR6212LA 12 Channels TMR Magnetic Pattern Recognition Sensor
Back
Part No.:TMR6212LA
Previous Part No.:
Channels:12 Channel
Structure:
Output:Differential
Sensing Length:120mm

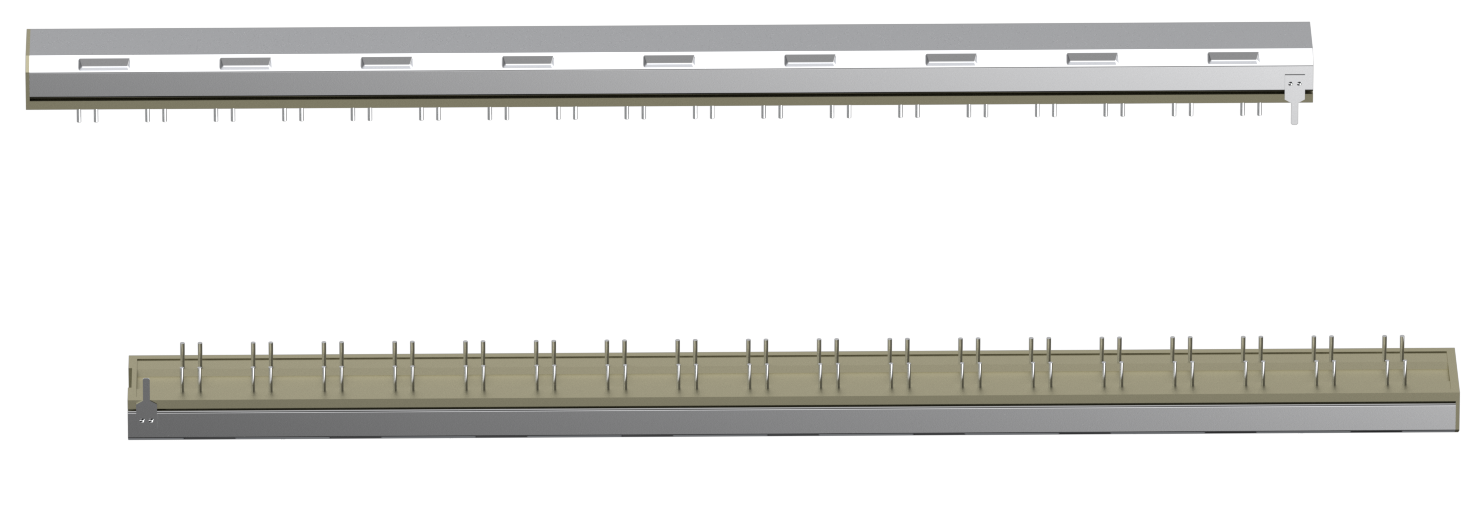

  • TMR6212LA

General Description:The TMR6206L is a type of 6 channels magnetic pattern recognition sensor with high consistency, high sensitivity and high signal-to-noise ratio performance, it is used for detecting the paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. The TMR6206L consist of TMR magneto-resistance sensor, high consistency magnet, high-strength plastic base and durable non-magnetic stainless steel cover.




Features and Benefits:

 (1)High sensitivity and excellent gap performances; (2)Sensitivity matching of each channel; (3)Output voltage is independent of scanning speed; (4)Differential output, high CMRR performance; (5)Durable metal case, suitable for long time and heavy load situations; (6)10mm x 12ch detection width, no non-detection area; (7)Customizable channels quantity.



Applications:(1)ATM;(2)Bill counter and validator;(3)Bill sorter;(4)Magnetic detection of the paper bills.






The information provided herein by MultiDimension Technology Co., Ltd. (hereinafter MultiDimension) is believed to be accurate and reliable. Publication neither conveys nor implies any license under patent or other industrial or intellectual property rights. MultiDimension reserves the right to make changes to product specifications for the purpose of improving product quality, reliability, and functionality. MultiDimension does not assume any liability arising out of the application and use of its products. MultiDimension’s customers using or selling this product for use in appliances, devices, or systems where malfunction can reasonably be expected to result in personal injury do so at their own risk and agree to fully indemnify MultiDimension for any damages resulting from such applications.

“MultiDimension”, “MultiDimension Sensing the Future”, and “MDT” are registered trademarks of MultiDimension Technology Co., Ltd.
