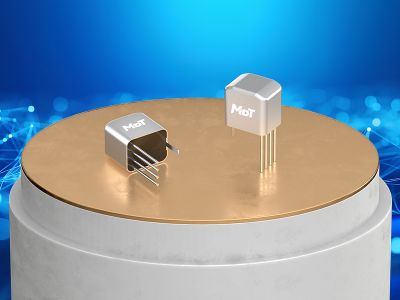

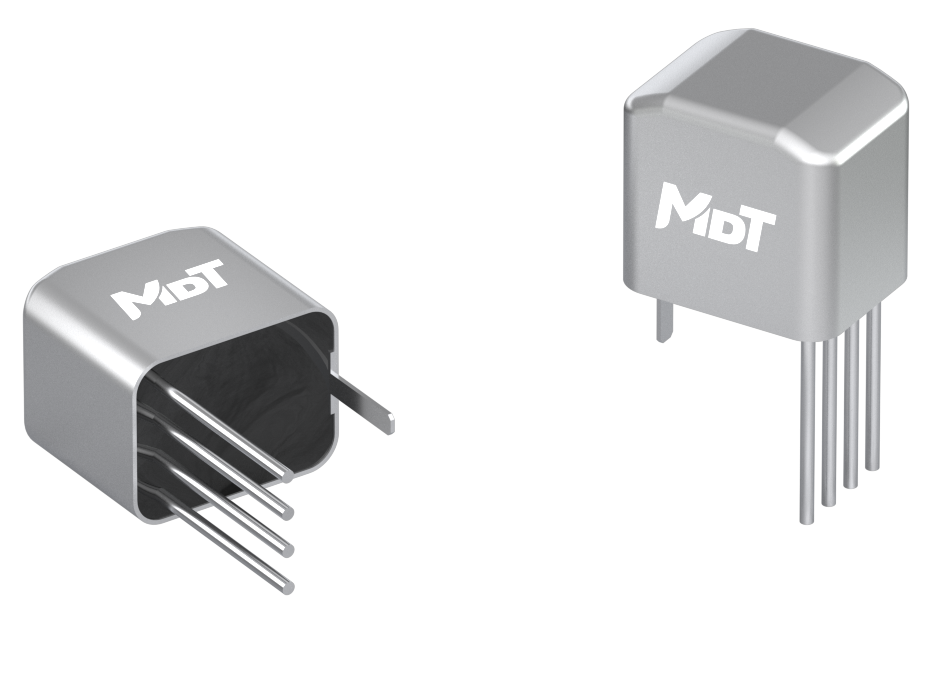

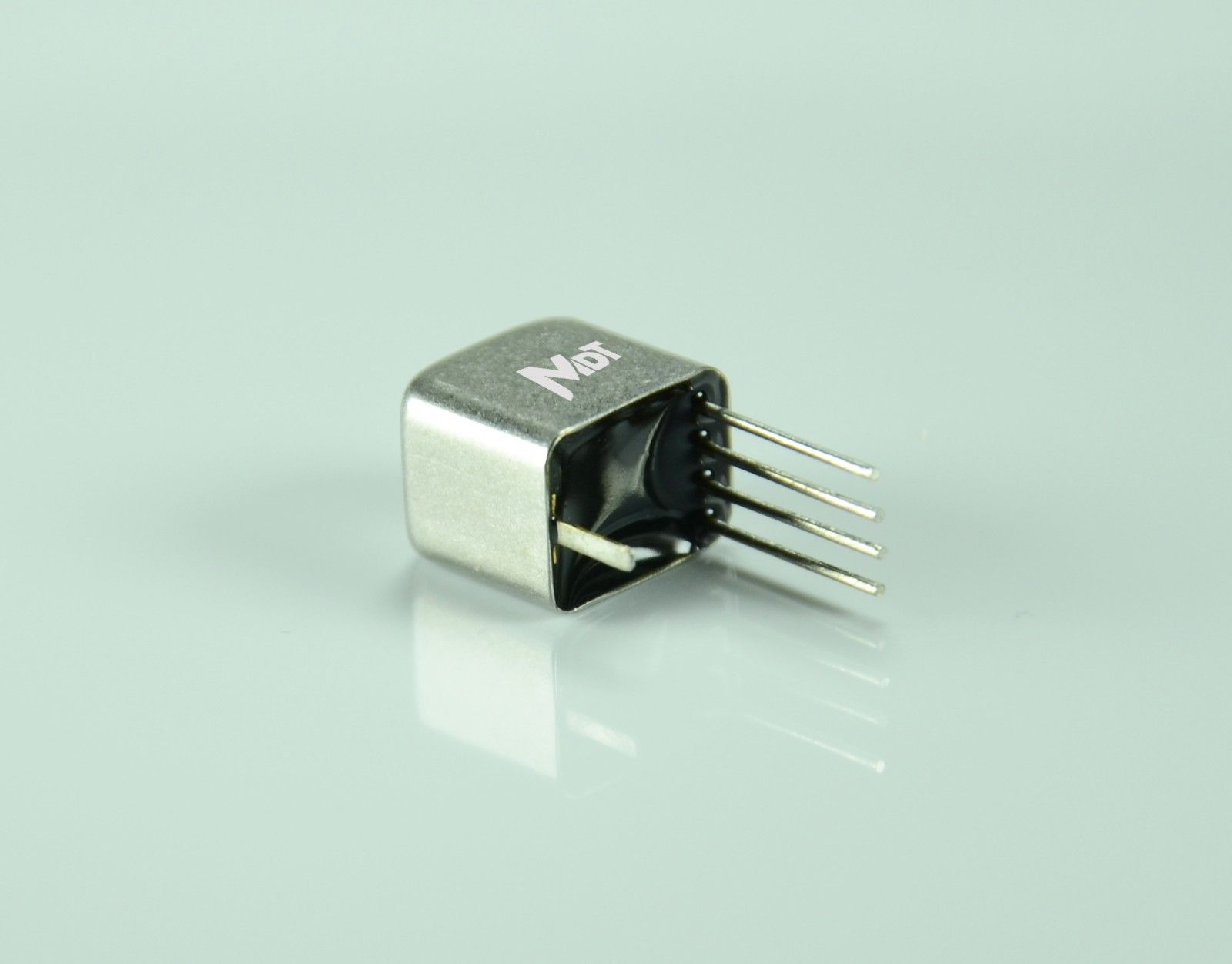

TMR6501 TMR Magnetic Pattern Recognition Sensor
Back
Part No.:TMR6501
Previous Part No.:
Channels:1 Channel
Structure:
Output:Differential
Sensing Length:5mm
  • TMR6501

General Description:The TMR6501 is a type of single channel magnetic pattern recognition sensor with high sensitivity, high signal-to-noise ratio performance, it is used for detecting paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. The TMR6501 consists of high sensitivity TMR magneto-resistance sensor, high-quality magnet and durable metal case.


Features and Benefits:(1)High sensitivity and excellent gap performances;(2)Output voltage is independent of scanning speed;(3)Differential output, high CMRR performance;(4)Single channel detection, 5mm detection width;(5)Compact size: L 10.5mm x W 8mm x H 9.6mm;(6)Simple structure for low cost solutions.



Applications:(1)Bill counter and validator;(2)Bill sorter;(3)Magnetic ink document reader;(4)Automatic vending machines and validator modules;






The information provided herein by MultiDimension Technology Co., Ltd. (hereinafter MultiDimension) is believed to be accurate and reliable. Publication neither conveys nor implies any license under patent or other industrial or intellectual property rights. MultiDimension reserves the right to make changes to product specifications for the purpose of improving product quality, reliability, and functionality. MultiDimension does not assume any liability arising out of the application and use of its products. MultiDimension’s customers using or selling this product for use in appliances, devices, or systems where malfunction can reasonably be expected to result in personal injury do so at their own risk and agree to fully indemnify MultiDimension for any damages resulting from such applications.

“MultiDimension”, “MultiDimension Sensing the Future”, and “MDT” are registered trademarks of MultiDimension Technology Co., Ltd.
