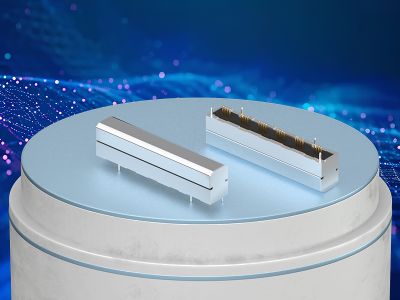

TMR6406X TMR Magnetic Pattern Recognition Sensor
Back
Part No.:TMR6406X
Previous Part No.:
Channels:6 Channel
Structure:
Output:Differential
Sensing Length:60mm
  • TMR6406X

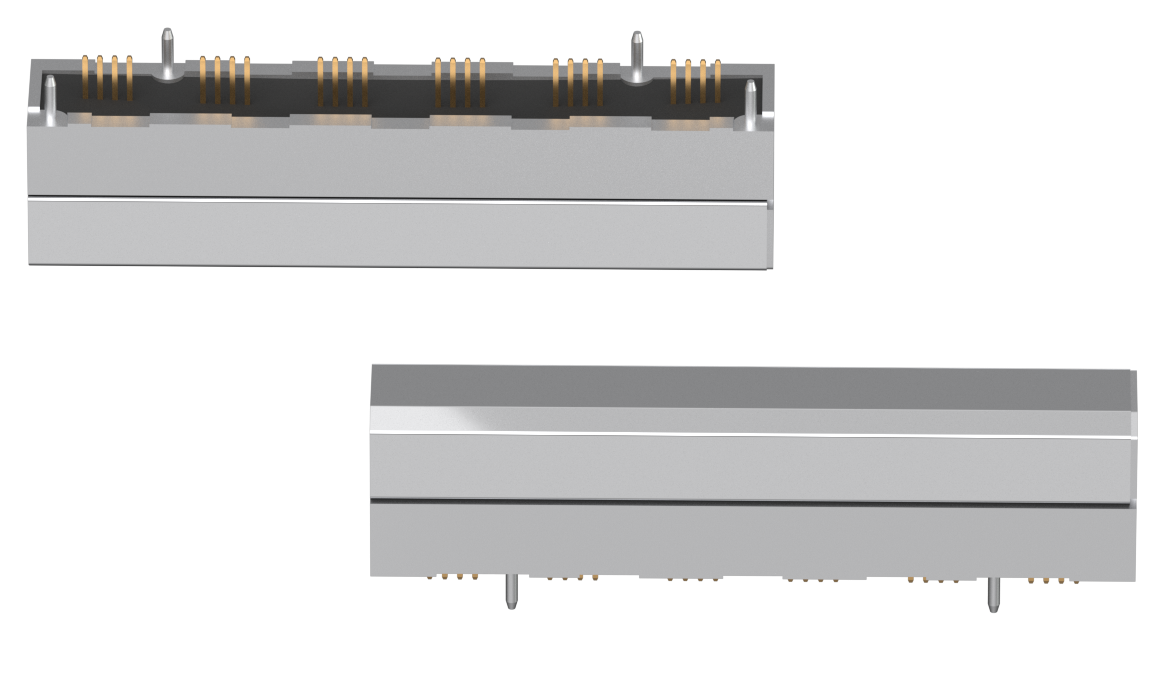

General Description:The TMR6406X is a type of 6 channels magnetic pattern recognition sensor with high uniformity, high sensitivity and high signal-to-noise ratio performance, stable magnetization and detection for high coercive force magnetic materials, it is used for detecting paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. TMR6406X covers wide detection width provides a low cost solution for scanning multiple currencies. The TMR6406X consists of high sensitivity TMR magneto-resistance sensor, high-quality magnet, high-strength metal base and durable non-magnetic stainless steel cover.



Features and Benefits:(1)Stable magnetization and detection for high coercive force magnetic materials;(2)High sensitivity and excellent gap performances;(3)Output voltage is independent of scanning speed;(4)Differential output, high CMRR performance;(5)Durable metal case, suitable for heavy load situations;(6)10mm x 6ch detection width, no non-detection area;(7)Compact size: L64mm x W11.5mm x H15.2mm.



Applications:(1)Bill counter and validator;(2)Bill sorter;(3)Magnetic ink document reader;(4)Vending machine.
