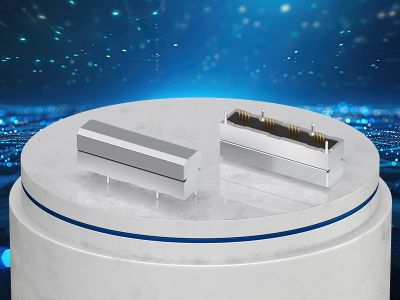

TMR6404X TMR Magnetic Pattern Recognition Sensor
Part No.:TMR6404X
Previous Part No.:
Channels:4 Channel
Sensing Length:40mm
  • TMR6404X

General Description:The TMR6404X is a type of 4 channels magnetic pattern recognition sensor with high sensitivity, high signal-to-noise ratio performance, stable magnetization and detection for high coercive force magnetic materials, it is used for detecting paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. TMR6404X covers wide detection width provides a low cost solution for scanning multiple currencies. The TMR6404X consists of high sensitivity TMR magneto-resistance sensor, high-quality magnet, high-strength plastic base and durable non-magnetic stainless steel cover.

Features and Benefits:(1)Stable magnetization and detection for high coercive force magnetic materials;(2)High sensitivity and excellent gap performances;(3)Output voltage is independent of scanning speed;(4)Differential output, high CMRR performance;(5)Durable metal case, suitable for heavy load situations;(6)10mm x 4ch detection width, no non-detection area;(7)Compact size: L 43.8mm x W 11.5mm x H 15.2mm.

Applications:(1)Bill counter and validator;(2)Bill sorter;(3)Magnetic ink document reader;(4)Vending machines.
