TMR6403A TMR Magnetic Pattern Recognition Sensor
Back
Part No.:TMR6403A
Previous Part No.:
Channels:3 channel
Structure:
Output:Differential
Sensing Length:30mm
  • TMR6403A

General Description:The TMR6403A is a type of 3 channels magnetic pattern recognition sensor with high sensitivity, high signal-to-noise ratio performance, it is used for detecting paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. TMR6403A covers wide detection area provides a low cost solution for scanning multi-currencies. The TMR6403A consists of high sensitivity TMR magneto-resistance sensor, high-quality magnet and durable metal case.



Features and Benefits:(1)High sensitivity and excellent gap performances;(2)Output voltage is independent of scanning speed;(3)Differential output, high CMRR performance;(4)10mm x 3ch detection width;(5)Downsizing appearance;(6)Simple structure for low cost solutions.

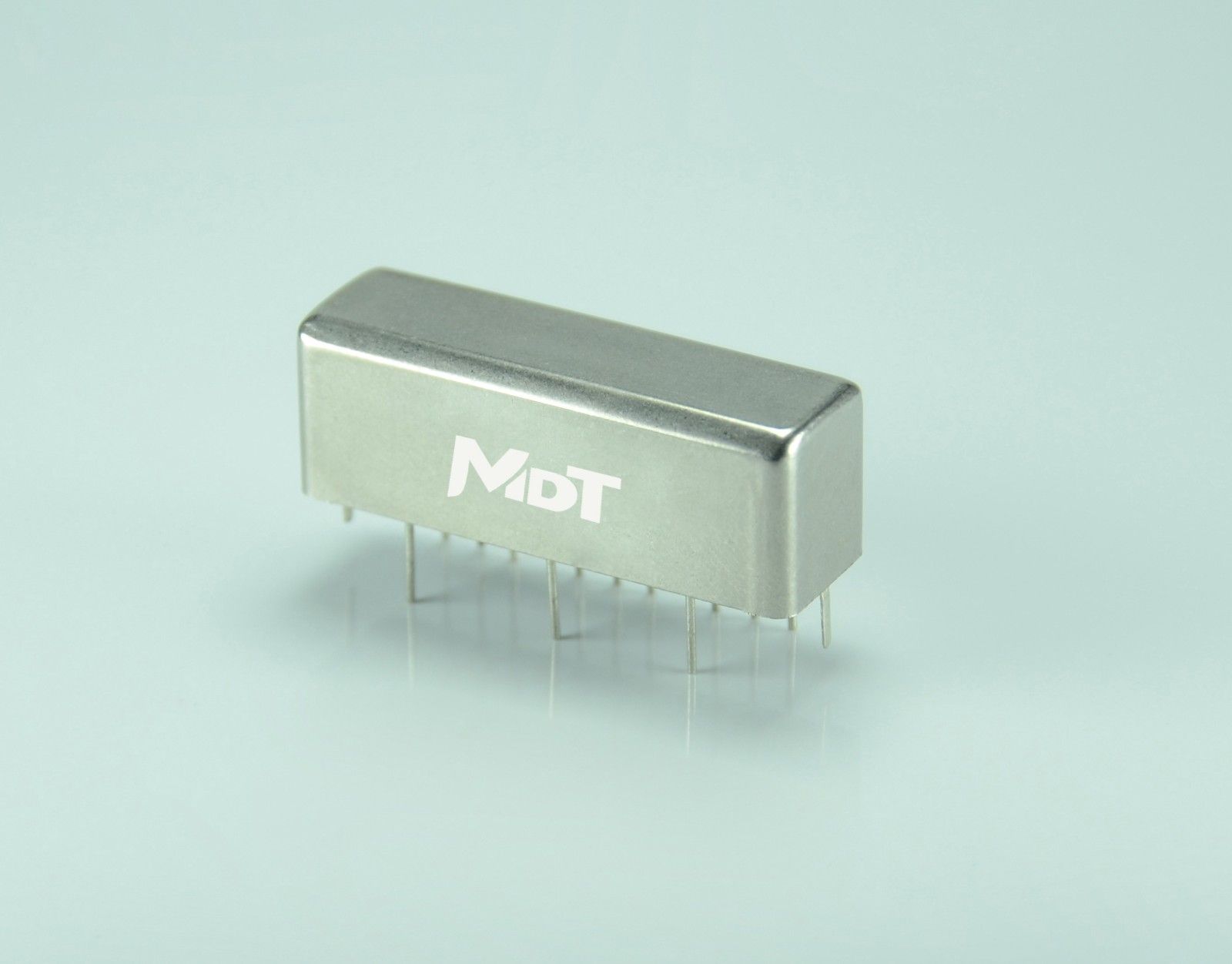

.Applications:(1)Bill counter and validator;(2)Bill sorter;(3)Magnetic ink document reader;(4)Automatic vending machines and validator modulesauto_2354.jpg





The information provided herein by MultiDimension Technology Co., Ltd. (hereinafter MultiDimension) is believed to be accurate and reliable. Publication neither conveys nor implies any license under patent or other industrial or intellectual property rights. MultiDimension reserves the right to make changes to product specifications for the purpose of improving product quality, reliability, and functionality. MultiDimension does not assume any liability arising out of the application and use of its products. MultiDimension’s customers using or selling this product for use in appliances, devices, or systems where malfunction can reasonably be expected to result in personal injury do so at their own risk and agree to fully indemnify MultiDimension for any damages resulting from such applications.

“MultiDimension”, “MultiDimension Sensing the Future”, and “MDT” are registered trademarks of MultiDimension Technology Co., Ltd.
