TMR6206D TMR PATTERN RECOGNITION SENSOR
Back
Part No.:TMR6206D
Previous Part No.:
Channels:6 Channel
Structure:
Output:Digital
Sensing Length:60mm
  • TMR6206D

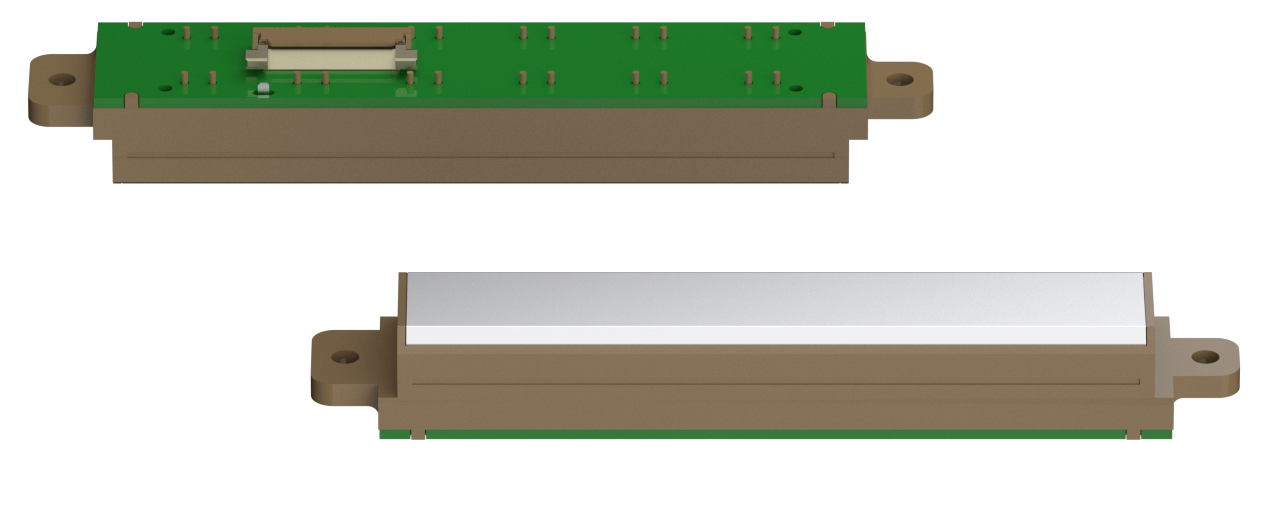

General Description:The TMR6206D is a type of 6 channels magnetic pattern recognition sensor built-in the signal conditioner and SPI interface The TMR6206D consists of TMR magneto-resistance sensor, high-quality magnet, high-strength plastic base and durable non-magnetic stainless steel cover; The TMR6206D serials are used for detecting the paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. The appearance is shown in Figure. 1.





Features and Benefits:(1)SPI interface;(2)ADC resolution 12bit;(3)High sensitivity and excellent gap performances;(4)Output voltage is independent of scanning speed;(5)Durable metal case, suitable for long time and heavy load situations;(6)10mm x 6ch detection width, no non-detection area;(7)Factory calibration before shipment.



Applications:(1)ATM;(2)Bill counter and validator;(3)Bill soeter;(4)Magnetic detection of the paper bills.
