TMR Gear Sensor Demo
Back
Name:TMR Gear Sensor Demo
Applications:

Instruments and Meters

Download:
  • TMR Gear Sensor Demo

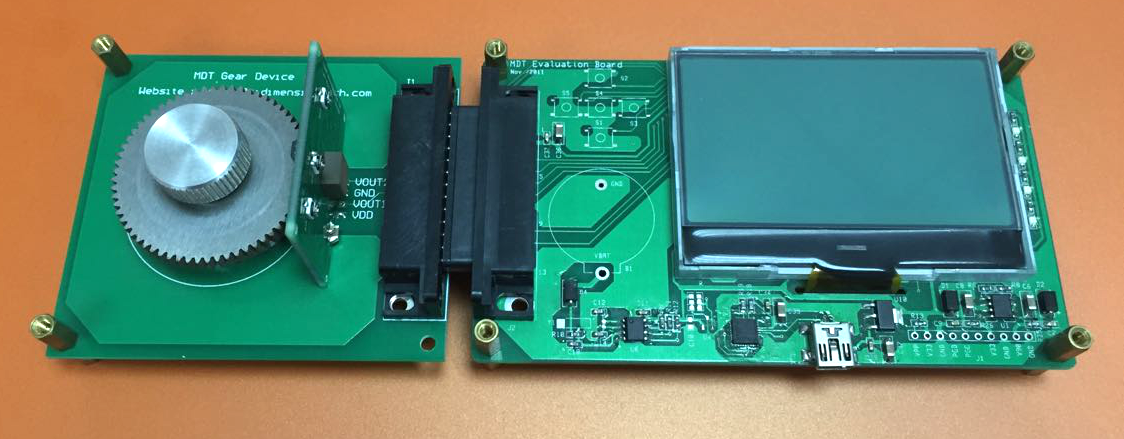

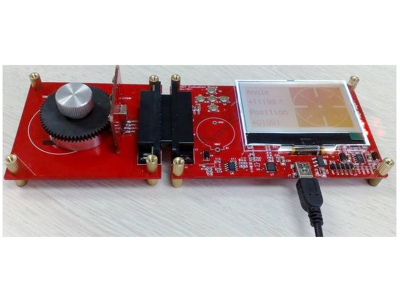

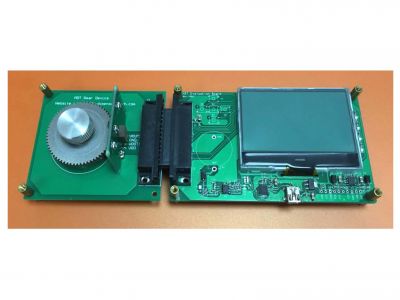

The Gear Demonstration Board is a complete gear sensor system with microcontroller, graphic LCD display and incremental A/B output indication LED which demonstrates the capabilities of MMG444DG devices. The absolute phase measurement provides instant indication of the gear’s angular position with a resolution of 1.4° = 256 positions per revolution and the absolute value of the teeth.

gear sensor  demo
