TMR1367 1.2V 200nA Omnipolar Magnetic Switch Sensor
  • 1367英
Part No.: TMR1367
Type: Omnipolar
Supply Voltage(V): 1.2~3.0 V
Power Consumption(μA): 200 nA
Operating Modes: power cycling

Sensing Direction: Z-axis
Bop (Gs,25°C)(Gs): ±20
Brp (Gs,25°C)(Gs): ±16
Output Interface: CMOS

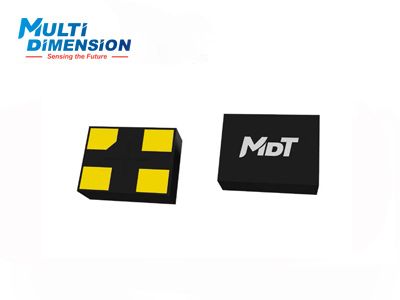

Package: LGA4L(2×1.5×0.63)
Lead Time: In stock


The TMR1367 is a digital omnipolar magnetic switch that integrates magnetoresistance and CMOS circuitry, which is able to detect the change of magnetic field and output high and low voltage signals for high accuracy position detection.

It contains a full-bridge push-pull tunneling magnetoresistance (TMR) sensor and CMOS signal processing circuitry within the same package, including an on-chip voltage generator and voltage amplifier and comparator for precise magnetic sensing, plus a Schmitt trigger to provide switching hysteresis for noise rejection, and CMOS push-pull output. An internal band gap regulator is used to provide a temperature compensated supply voltage for internal circuits, permitting a wide range of supply voltages.

The TMR1367 operates in low voltage and draws only 200 nA resulting in low power operation. It has fast response, accurate switching points, excellent thermal stability, and immunity to stray field interference. It is available in the compact LGA4L (2mm × 1.5mm × 0.63mm) package.


Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconUltra-low power consumption at 200 nA
icon3 Hz switching frequencyiconOmnipolar operation
iconZ-axis sensitivityiconCMOS push-pull output
iconHigh sensitivityiconLow supply voltages: 1.2 V to 3.0 V
iconExcellent temperature stability


iconUtility meters: water, gas, and heat metersiconProximity switches
iconLinear and rotation position sensingiconMedical wake-up switches
