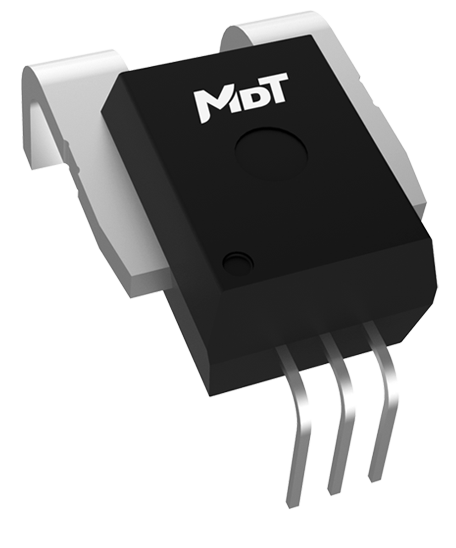

TMR7302-E Integrated Current Sensor
  • TMR7302-E-big
Part No.：TMR7302-E
Nominal current(A)：/
Current range(A)：±50～±250
Voltage(V)：3.3/5
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±1/±2
Linearity(%FS)：0.5/0.3
Offset(mV)：±10～±25
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：10
Operating Temperature(℃)：-40～+125

Description

TMR7302-E is based on the open loop integrated current sensor for measuring DC, AC, pulsed current and arbitrary waveform current with galvanic isolation and its internal temperature compensation circuitry provides excellent performance under different ambient temperature ranges.

tmr7302-eTMR7302-E

Features and Benefits

iconOpen loop principleiconHigh accuracy
iconSmall size, simple structureiconExcellent temperature stability

Applications

iconPower supplies for welding applicationiconDC motor drive
iconInverter and variable frequency drives (VFD)iconOvercurrent protection
