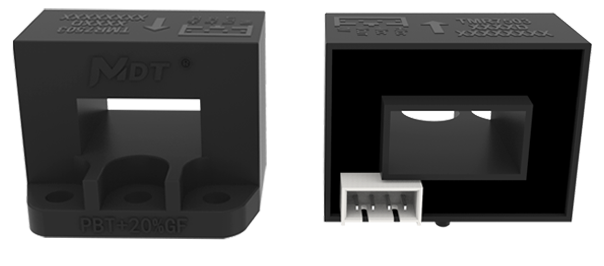

TMR7503-D Unibody Low Temperature-Drift Current Sensor
  • 7503-d
Part No.：TMR7503-D
Nominal current(A)：50～600
Current range(A)：±150～±900
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5/±1.5
Linearity(%FS)：0.4
Offset(mV)：±10/±20
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：2
Operating Temperature(℃)：-40～+105

Description

TMR7503-D is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuit.

TMR7503-DTMR7503-D

Features and Benefits

iconLow temperature drifticonGalvanic isolation
iconHigh immunity to external interferenceiconGood linearity
iconCompact size and light weight

Applications

iconDC motor drivesiconInverters and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconBattery management system (BMS)
iconSwitching power suppliesiconPower supplies for welding application
iconCommunication power supplies
