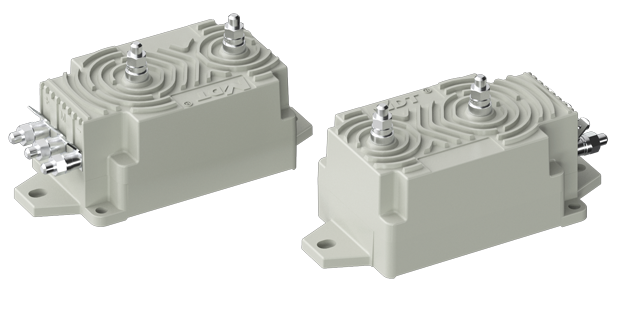

TMR7901-B Isolated Voltage Sensor
  • TMR7901-B-big
Part No.：TMR7901-B
Nominal current(A)：50 to 2000
Current range(A)：±75 to ±3000
Voltage(V)：±12 to ±24
Vout(V)：/
RL(kΩ)：/
Accuracy(%FS)：±0.7
Linearity(%FS)：0.5
Offset(mV)：/
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：30
Operating Temperature(℃)：-40 to 85

Description

TMR7901-B series are voltage sensor for accurate measurement of DC, AC, Pulse, and arbitrary voltage signal with galvanic isolation between the primary and secondary circuits.

tmr7901-bTMR7901-B

Features and Benefits

iconLow powericonCompact design
iconHigh accuracy low drifticonFast response
iconHigh immunity to external interferenceiconRoHS & REACH compliant

Applications

iconSingle or three phase invertersiconBreaking choppers
iconSubstationiconHigh power drive unit
