TMR1387 High-Voltage TMR Omnipolar Switch

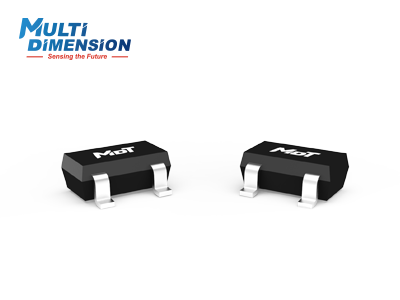

  • sot23-3-en
Part No.: TMR1387
Type: Omnipolar
Supply Voltage(V): 3~40 V
Power Consumption(μA): 0.6 mA
Operating Modes: continuous power, no duty cycling

Sensing Direction: X-axis
Bop (Gs,25°C)(Gs): ±65
Brp (Gs,25°C)(Gs): ±40
Output Interface: Open Drain
Package: SOT23-3
Lead Time: In stock


TMR1387 is a digital omnipolar magnetic switch that integrates TMR and CMOS technology in order to provide a magnetically triggered digital switch with high sensitivity, high speed, and low power consumption. It is designed for use in applications that are both power-critical and performance-demanding. It contains a push-pull TMR sensor bridge and CMOS signal processing circuitry within the same package, including an on-chip TMR voltage generator for precise magnetic sensing, a TMR voltage amplifier and comparator plus a schmitt trigger to provide switching hysteresis for noise rejection, and an open-drain output. An internal band gap regulator is used to provide a temperature compensated supply voltage for internal circuits, permitting a wide range of supply voltages from 3 V up to 40 V. The TMR1387 draws only 0.6 mA resulting in low-power operation. It has fast response, accurate switching points, excellent thermal stability, and immunity to stray field interference. It is available in SOT23-3 package.


Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconLow power consumption < 0.6 mA
iconHigh frequency response ≥ 100 kHziconOmnipolar operation
iconIn-plane X-Axis sensingiconOpen-drain output
iconHigh supply voltages of 40 V and 30 V reverse voltageiconHigh sensitivity
iconHigh tolerance to external magnetic field interferenceiconExcellent temperature stability


iconUtility meters: water, gas, and heat metersiconProximity switches
iconSpeed sensingiconPosition sensing
iconMotor and fan controliconPower window
