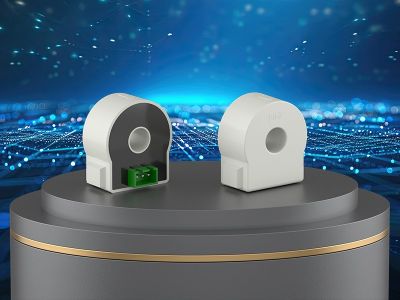

TMR7401-300mA Leakage current sensor
Back
Part No.:TMR7401-300mA
Description:Leakage current sensor
Nominal current(A):0.3
Current range(A):0~±0.5
Voltage(V):5
Vout(V):3.7
RL(kΩ):≥10
Accuracy(%FS):±2
Linearity(%FS):1
Offset(mV):±30
Offset drift(mV/℃):±1
Output drift(mV/℃):±0.5
Response(us):10
Operating Temperature(℃):-40~85
Datasheet:
  • TMR7401-300mA

General DescriptionTMR7401 series leakage current sensor based on magnetic induction principle, incorporates our tunneling magnetoresistive (TMR) sensor with high sensitivity and high SNR. With the build-in conditioning circuits for offset voltage, temperature and non-linearity compensation, it provides accurate measurement of DC, AC and pulse current. TMR7401 provides excellent primary to secondary galvanic isolation, low power consumption and compact size design.


Features and Benefits1Open loop current sensor;2Low power consumption;3High accuracy;4Single power supply;5Low linearity error;6Low offset drift over temperature .



Applications:(1Leakage current measurement;2Single phase or three phase nominal current measurement;3Telecommunication power supply;4Residual current measurement in DC sources.
