GE-A GEARTOOTH ENCODER Incremental type
Back
Part No.:GE-A GEARTOOTH ENCODER
Description:Incremental type
Gear Module:Sin/Cos(1Vpp)
Frequency Response(MHz):5VDC±10%
Output signal:0.3~1
Operating Temperature(℃):by calibrator
Amplitude(V):
Phase Tolerance(°):
Distance between Mounting Holes(mm):
Mounting Air gap(mm):by calibrator
Mounting Tolerance(mm):
Protection Grade:
Datasheet:Download
  • GE-A GEARTOOTH ENCODER

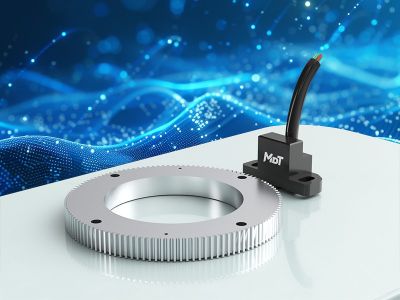

General DescriptionThe GE-A Geartooth Encoders (including Normal Version and Enhanced Version) of MultiDimension Technology (MDT) are non-contact incremental encoders for rotary speed and position measurement. Based on MDT’s unique Tunneling Magnetoresistance (TMR) sensor technology, they provide orthogonal differential sin/cos signals with high quality, along with an index signal and their inverse signals. The GE-A series are designed for 0.3~1.0-module gears with different teeth numbers.(Gear is the optional product).


Features (1)Output signal amplitude in 1Vpp with high quality;(2)High frequency response up to 1MHz;(3)Operating temperature range from -40°C to 100°C;(4)IP68 protection grade.



Advantages (1)Fully sealed housing with metal case to ensure the highest protection level;(2)Non-contact measurement, abrasion and vibration free, can work in harsh environments such as water, oil or dust;(3)Weak magnetic induction prevents the gear from being magnetized, and the surface of the encoder is not easy to adsorb iron filings;(4)Large tolerance to air-gap and installation position with high-sensitivity TMR sensors;(5)Both convex and concave type are allowed for the index teeth;(6)Enhanced Version can support online debug function: With GF-A Debug Board, the encoder can be debugged online in real time. It can simplify installation and improve encoder accuracy(GF-A Debug Board is the optional product)




Applications(1)Rotary position and speed sensing in CNC machines;(2)Energy and power generation systems;(3)Railway equipment;(4)Elevators.
