USB25103 Three-Axis High-Field USB Magnetometer
Back
Part No.:USB25103
Description:Three-Axis High-Field USB Magnetometer
Measurement Range(Oe):-20k~20k
Sensing Direction:X/Y/Z
Hysteresis (Oe):0
Uncorrected Nonlinearity:2%FS(Fit@±5kOe)
RMS Noise(mOe):75
Temperature Coefficient of Sensitivity(%/℃):-0.06
Sampling Frequency:250
Datasheet:
  • USB25103

Download 1 - User ManualUSB_Magnetometer_User_manual_v2.1.pdf

Download 2 - PC Software Suite and DocumentationsUSBMagV3.3.6.rar

Download 3 -  Android USBMag.zip

(Custom compiled firmware for the USB Magnetometers is available upon request. Please contact jim.deak@dowaytech.com for information pertaining to USB magnetometer firmware.

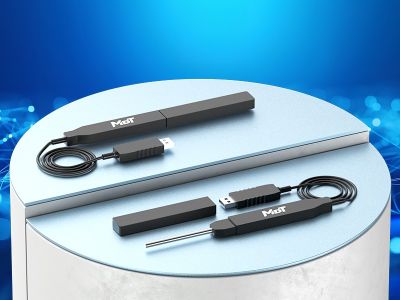

General Description:The MDT USB25103 is a three-axis digital magnetometer that is intended for the measurement of magnetic fields near the probe tip at frequencies less than 250 Hz.  The MDT USB25103 combines three orthogonal magnetic field sensors with plug-and-play USB data acquisition electronics and software to provide a three-axis digital magnetometer system in a simple form factor.  It is designed such that the user may use it directly combined with the proprietary MDT graphical user interface (GUI), controlled with a terminal emulator program, or integrated into the user’s custom written program.  The GUI can be run on a desktop computer, a notebook, or a Windows tablet. Additionally, the probe electronics may be reprogrammed by the user using freely available open source Arduino development tools.  The MDT USB Magnetometer is thus a complete development tool that allows a user a simple means for experimenting with magnetic sensors, sensor applications, and developing sensor algorithms.

usb25103


Features and Benefits: (1)High Sensitivity Tunneling Magnetoresistance (TMR) Technology; (2)Measurement Range of -20 kOe to 20 kOe; (3)5 Digit Resolution; (4)Plug and Play USB Interface;(5)Powered from USB Bus; (6)Graphical User Interface; (7)Command Line User Interface; (8)Manual Range Selection; (9)Adjustable Filtering and Averaging; (10)Simple Zeroing and Calibration; (11)Customizable Linearization and Orthogonalization; (12)Documented Programming Interface; (13)Reconfigurable Hardware; (14)Manual and Automatic Triggering.



Applications:(1)High Resolution Laboratory Measurements; (2)Automated Data Acquisition and Control; (3)Materials Research; (4)Non Destructive Testing; (5)Magnetic Object Tracking; (6)Sensor Algorithm Development; (7)STEM Education; (8)Hobby and DIY
