TMR1383 High-Voltage TMR Omnipolar Switch

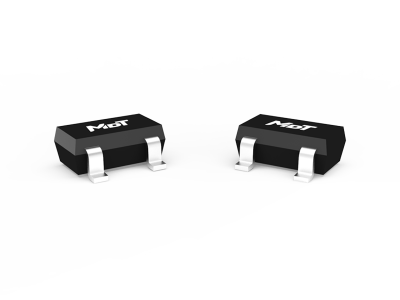

  • sot23-3、to92s-en
Part No.: TMR1383
Type: Omnipolar
Supply Voltage(V): 3~40 V
Power Consumption(μA): 0.6mA
Operating Modes: continuous power, no duty cycling

Sensing Direction: X-axis
Bop (Gs,25°C)(Gs): ±26
Brp (Gs,25°C)(Gs): ±19
Output Interface: Open Drain
Package: SOT23-3 TO92S
Lead Time: In stock

General Description:TMR1383 is a digital omnipolar magnetic switch that integrates TMR and CMOS technology in order to provide a magnetically triggered digital switch with high sensitivity, high speed, and low power consumption.

It is designed for use in applications that are both power-critical and performance-demanding. It contains a push-pull TMR sensor bridge and CMOS signal processing circuitry within the same package, including an on-chip TMR voltage generator for precise magnetic sensing, a TMR voltage amplifier and comparator plus a schmitt trigger to provide switching hysteresis for noise rejection, and an open-drain output. An internal band gap regulator is used to provide a temperature compensated supply voltage for internal circuits, permitting a wide range of supply voltages from 3 V up to 40 V. The TMR138x draws only 0.6 mA resulting in low-power operation. It has fast response, accurate switching points, excellent thermal stability, and immunity to stray field interference. It is available in two compact SOT23-3 and TO92S packages.

Features and Benefits:(1)Tunneling magnetoresistance (TMR) technology (2)Low power consumption < 0.6 mA (3)High frequency response ≥ 100 kHz (4)Omnipolar operation (5)In-plane X-Axis sensing (6)High supply voltages of 40 V and 30 V reverse voltage (7)Open-drain output (8)High sensitivity (9)Excellent temperature stability (10)High tolerance to external magnetic field interference.

 Applications:(1)Utility meters: water, gas, and heat meters (2)Proximity switches (3)Speed sensing (4)Position sensing (5)Motor and fan control (6)Power window
