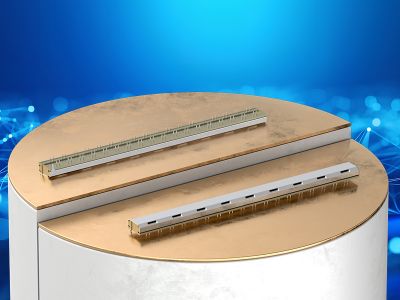

TMR6218LA TMR Magnetic Pattern Recognition Sensor
Back
Part No.:TMR6218LA
Previous Part No.:
Channels:18 Channel
Structure:
Output:Differential
Sensing Length:180mm
  • TMR6218LA

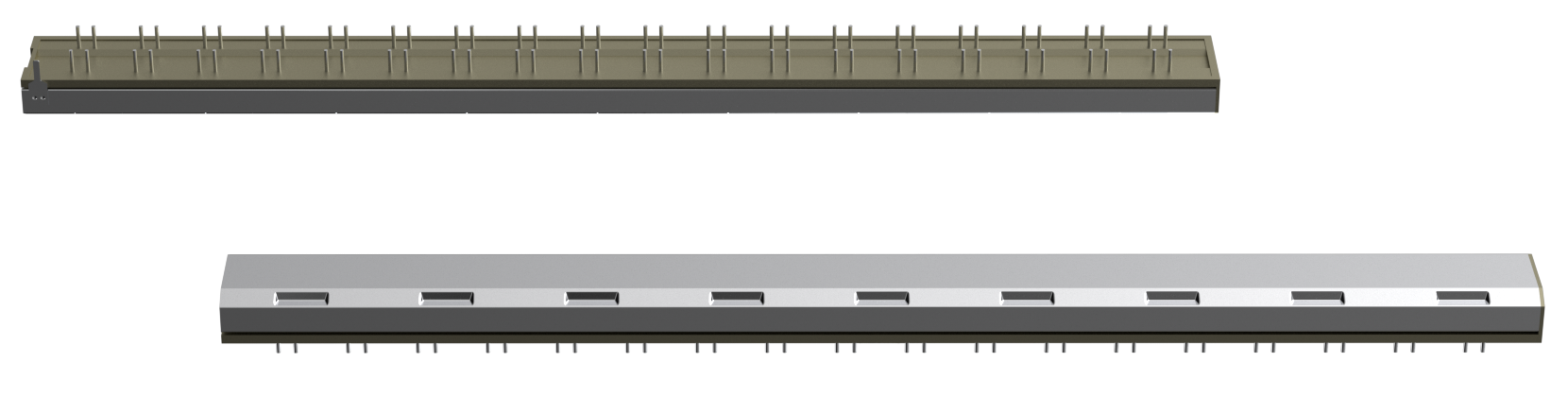

General Description:The TMR6218LA is a type of 18 channels magnetic pattern recognition sensor with high consistency, high sensitivity and high signal-to-noise ratio performance, it is used for detecting full size of the paper bills, bank notes and security documents with magnetic anti-counterfeiting consists. The TMR6218LA consist of TMR magneto-resistance sensor, high-quality magnet, high-strength plastic base and durable non-magnetic stainless steel cover; and the TMR6218LA is 21mm.



Features and Benefits:(1)High sensitivity and excellent gap performances; (2)Sensitivity matching of each channel;(3)Output voltage is independent of scanning speed; (4)Differential output, high CMRR performance; (5)Durable metal case, suitable for long time and heavy load situations; (6)180mm detection width, no non-detection area; (7)18 channels, 10mm detection width per channel.



Applications:(1)Bill counter and validator;(2)Bill sorter;(3)ATM;(4)Magnetic detection of the paper bills
