TMR7554-B Board Mounted, Precision Current Sensor

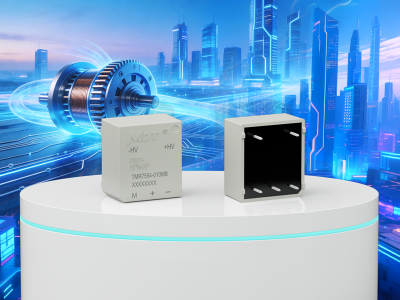

  • TMR7554-big
Part No.：TMR7554-B
Nominal Current(A)：10 mA
Current Range(A)：±14 mA
Voltage(V)：±15
Operating Temperature(℃)：-40 to +85
Accuracy(%IPN)：±0.5
Sensitivity Error(%)：±0.4
Linearity(%IPN)：0.2
Offset Error(mV)：/
Response(μs)：<40
Bandwidth(kHz). -3dB：<150

Description

TMR7554-B is a close loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

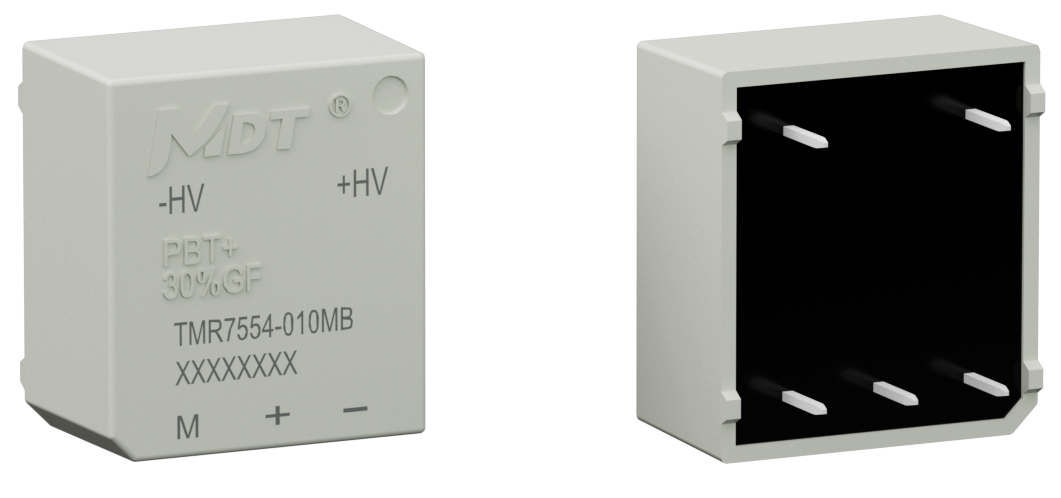

tmr7554-bTMR7554-B

Features and Benefits

iconHigh accuracyiconExcellent linearity
iconUltra low temperature coefficienticonFast response time
iconGalvanic isolationiconHigh immunity to external interference
iconHigh immunity to common mode interferenceiconRoHS & REACH compliant

Applications

iconDC motor drivesiconInverter and variable frequency drives (VFD)
iconUninterruptible power supplies (UPS)iconBattery monitoring system
iconPower supplies for welding application
  • New Products
  • TMR7554-B

    TMR7554-B

    Board Mounted, Precision Current Sensor

The information provided herein by MultiDimension Technology Co., Ltd. (MDT) is believed to be accurate and reliable. The technology disclosed by MDT does not infringe the patents of other companies and owns independent intellectual property rights. We reserve the right to change the specification of products and/or the information given herein at any time to improve product quality, reliability and functionality. MDT does not assume any liability arising out of the application and use of its products.
