TMR3017 High Accuracy Analog TMR Angle Sensor
  • TMR3017-big
Part No.: TMR3017
Type: Analog Series
Supply Voltage(V): ≤ 5.5
Angle Measurement(°): 360°
Resistance(kΩ): 200
PP (mV/V): 200
Field Operating Range(Gs): 200 to 800
Angular Error: /
Output: Analog
Package: DFN4L SOT23-5
Lead Time: In stock

Description

TMR3017 contains a push-pull Wheatstone bridge, which is composed of four high-sensitivity tunneling magnetoresistance (TMR) elements. The sensor outputs a sinusoidal signal, and the period of the signal is that the di rection of the magnetic field rotates 360° in the sensing plane.

TMR3017 is available in three compact SOT23-5, DFN4L (0.8 mm × 0.4 mm × 0.23 mm) and DFN4L (1.6 mm × 1.6 mm × 0.5 mm) package for easy assembly in small spaces.

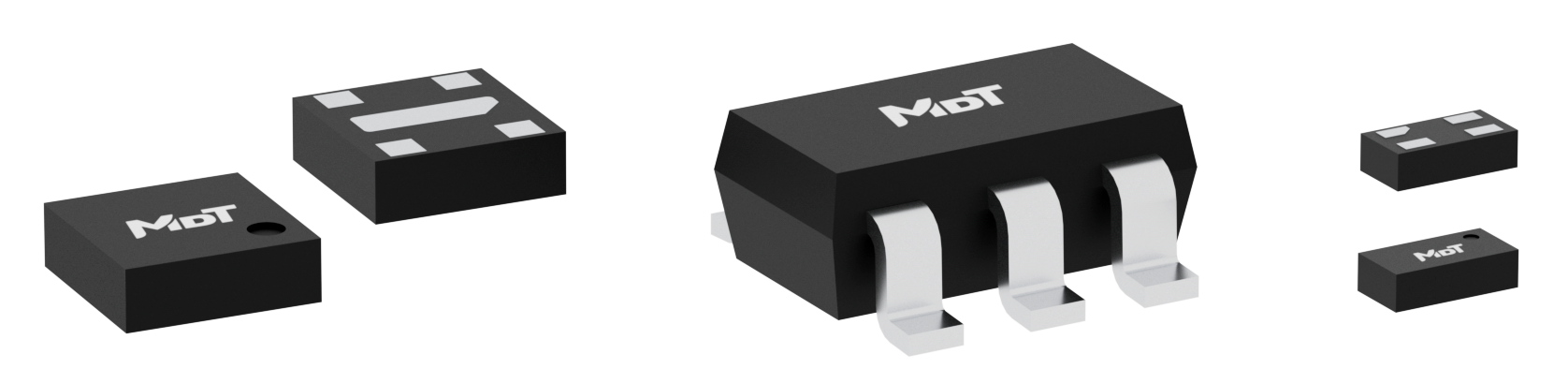

tmr3017          DFN4L(1.6×1.6)               SOT23-5        DFN4L(0.8×0.4)

Features and Benefits

iconTunneling magnetoresistance (TMR) technologyiconWide range supply voltage
iconAnalog differential outputiconExcellent temperature stability
iconAdapt to large air gapicon Compact DFN package
iconRoHS & REACH compliant

Applications

iconAngular position sensingiconLinear position sensing
