TMR7504-B Unibody Low Temperature-Drift Current Sensor

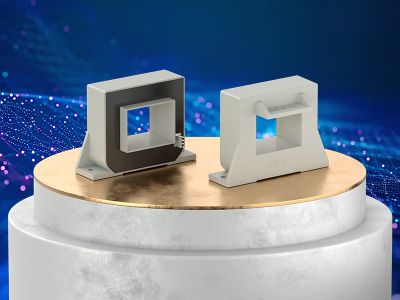

  • TMR7504-B-big
Part No.：TMR7504-B
Nominal current(A)：200 to 1500
Current range(A)：±600 to ±2500
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5
Linearity(%FS)：0.2
Bandwidth(kHz). -3dB：25
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：5
Operating Temperature(℃)：-40 to +105

Description

TMR7504-B is an open loop current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

TMR7504-BTMR7504-B

Features and Benefits

iconLow temperature drifticonGalvanic isolation
iconHigh immunity to external interference

Applications

iconDC motor drivesiconUninterruptible power supplies (UPS)
iconInverter and variable frequency drives (VFD)iconSwitching power supplies
iconPower supplies for welding application
