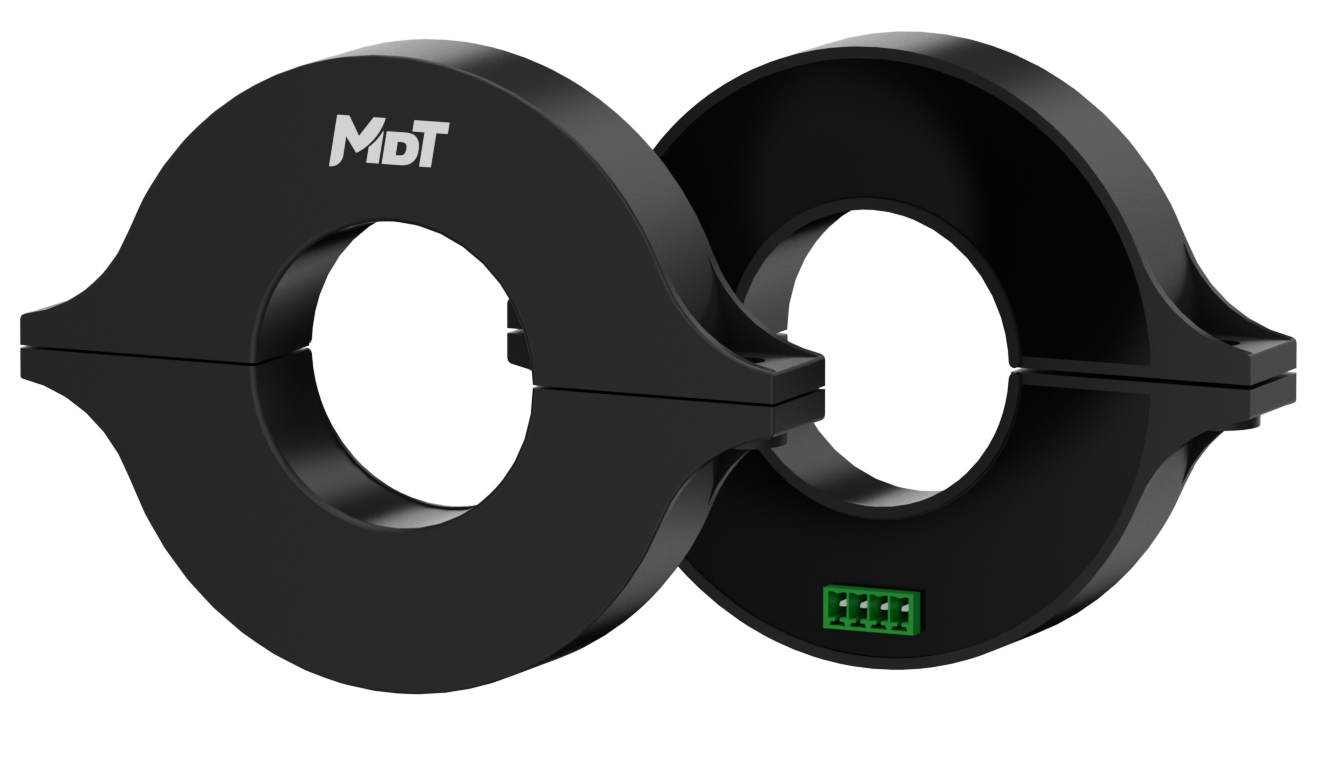

TMR7204-C Open-close type current sensor with round hole
  • TMR7204-C-big
Part No.：TMR7204-C
Nominal current(A)：2000
Current range(A)：-4000 to 4000
Voltage(V)：±15
Vout(V)：/
RL(kΩ)：10
Accuracy(%FS)：±0.5/±1.5
Linearity(%FS)：±0.5
Bandwidth(kHz). -3dB：50
Offset drift(mV/℃)：/
Output drift(mV/℃)：/
Response(μs)：5
Operating Temperature(℃)：-40 to +70

Description

TMR7204-C is a TMR array current sensor for accurate measurement of DC, AC, pulsed current and arbitrary waveform current with galvanic isolation between primary and secondary circuits.

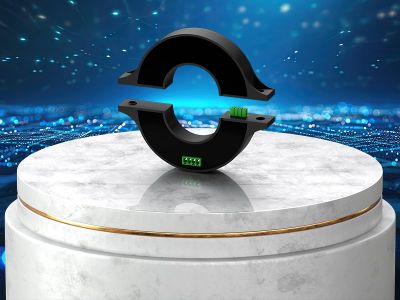

tmr7204-cTMR7204-C

Features and Benefits

iconLow temperature coefficienticonGalvanic isolation
iconHigh immunity to external interferenceiconRoHS & REACH compliant

Applications

iconInverter and variable frequency drives (VFD)iconDC motor drives
iconUninterruptible power supplies (UPS)iconPower supplies for welding application
iconSwitching power supplies
