TMR2102 大动态范围TMR线性传感器
返回上一层
  • sop8
  • dfn8l(3x3x0.75)
  • sop8
  • dfn8l(3x3x0.75)
产品型号:TMR2102
兼容型号:MMLP57F
磁阻结构:全桥
供电电压:0~7 V
敏度(mV/V/Oe):4.9
电阻(kΩ):90/45
饱和场(Oe):±90
敏感方向:X轴
磁滞(Oe):0.1
本底噪声(nT/rt(Hz) @1Hz):~10
封装形式:SOP8 DFN8L(3×3×0.75)
交付周期:In stock
规格说明书:
  • TMR2102

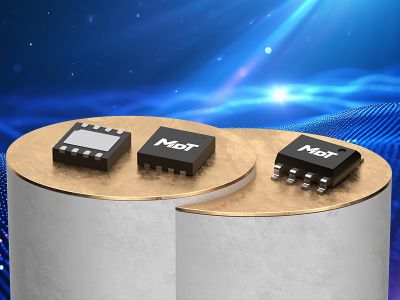

产品概述:TMR2102采用了一个独特的推挽式惠斯通全桥结构设计,包含四个非屏蔽高灵敏度TMR传感器元件。当外加磁场沿平行于传感器敏感方向变化时,惠斯通全桥提供差分电压输出,并且该输出具有良好的温度稳定性。TMR2102性能优越,采用两种封装形式:SOP8(6mm × 5mm × 1.5mm)和DFN8(3mm × 3mm × 0.75mm)。



产品特性:(1)隧道磁电阻(TMR)技术;(2)高灵敏度;(3)宽动态范围;(4)极低功耗;(5)优越的温度稳定性;(6)极低的磁滞;(7)宽工作电压范围



典型应用:(1)磁力计;(2)电流传感器;(3)工业流量计;(4)位置传感器;(5)角度传感器

sop8 dfn8l(3x3x0.75)


参考文献:

[1]Luong V S, Chang C H, Jeng J T, et al. Reduction of Low-Frequency Noise in Tunneling-Magnetoresistance Sensors With a Modulated Magnetic Shielding[J]. IEEE Transactions on Magnetics, 2014, 50(11):1-4.

摘要:The high-noise level at low frequency in magnetic tunnel junction (MTJ) sensors is the key problem for their applications in measuring the low values of static magnetic field. In this paper, we investigated a shielding-type flux chopper to resolve the 1/f noise issue. By the using a cylindrical chopper with its axis perpendicular to the sensing direction of MTJ sensor, the noise at 1 Hz was reduced from 4 to 0.3 nT/rtHz by chopping the magnetic flux at 5 kHz. The reduction in noise can be qualitatively explained by the 1/f behavior and the chopping efficiency. The proposed method is promising in enhancing the detectivity of MTJ sensor for sensing the static geomagnetic field.

出版源:《IEEE Transactions on Magnetics》, 2014, 50(11):1-4

关键词:1/f noise / magnetic field measurement / magnetic flux / magnetic noise / magnetic sensors / magnetic shielding / magnetoresistive devices / tunnelling magnetoresistance / 1/f noise / MTJ sensor


[2]Development of low-noise three-axis magnetometer with tunneling-magnetoresistance sensors

摘要:Three dimensional magnetic sensors play important roles for multiple applications, e g position sensing, automotive application, and geomagnetic navigation. In recent decades, many groups developed various kinds of vector magnetometer, including Hall effect, the anisotro-pic magnetoresistance (AMR) effect, giant magnetoresistance (GMR) sensors, and tunneling magnetoresistance (TMR) magnetometer. For all the designs, the inaccuracy in alignment of sensors or flux-guide leads to non-orthogonality between each sensing directions Another issue on three-axis magnetometer is to achieve a low-noise without increasing the size too much. In order to deal with this issues, several extrinsic methods have been reported, e g TMR arrays, flux concentrator, and flux-chopping techniques. Interestingly, the 1/f noise can be reduced by a factor of 12 with a shielding type magnetic flux chopper, which was realized successfully in the ref. In this work, we design and manufacture a low-noise vector magnetometer comprising three TMR sensors orthogonally aligned and placed in the central of a shielding flux chopper The non-orthogonality issue can be solved by the calibration process using a voltage-to-field transfer matrix.

出版源:IEEE Magnetics Conference, 2015

关键词:1/f noise / Hall effect / geomagnetic navigation / giant magnetoresistance / magnetic anisotropy / magnetic sensors / magnetometers / magnetoresistive devices / tunnelling magnetoresistance / 1/f noise
