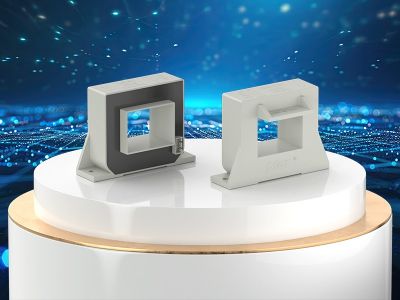

TMR7504-C Unibody Low Temperature-Drift Current Sensor
Back
Part No.:TMR7504-C
Description:Unibody Low Temperature-Drift Current Sensor
Nominal current(A):200~1500
Current range(A):±600~±2500
Voltage(V):±15
Vout(V):/
RL(kΩ):10
Accuracy(%FS):±0.5
Linearity(%FS):±0.2
Offset(mV):±10/±20
Offset drift(mV/℃):/
Output drift(mV/℃):/
Response(us):5
Operating Temperature(℃):-40~+105
Datasheet:Download

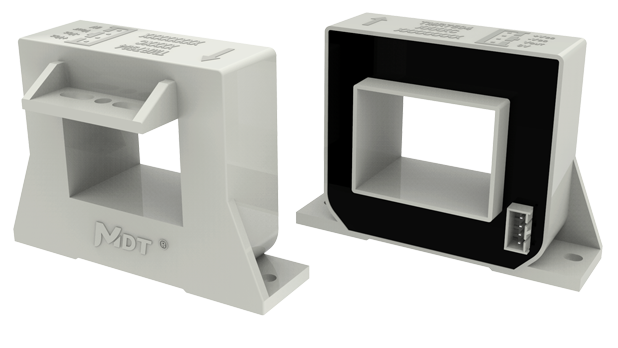

  • TMR7504-C

General Description: TMR7504-C is an open loop current sensor for accurate measurement of DC, AC, pulsed current and irregular waveform current with galvanic separation between primary and secondary circuit.


Features and Benefits:(1)Low temperature drift;(2)High immunity to external interference;(3)Galvanic isolation.


Applications:(1)DC motor drive(2)Inverters and variable frequency drive(VFD);(3)Uninterruptible power supplies (UPS)(4)Power Supplies for Welding Application;(5)Switching Power Supplies.
