TMR2001 TMR Linear Sensor
Back
Part No.:TMR2001
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):8
Resistance (kΩ):60
Saturation Field (Oe):±25
Sensing Direction:X-axis
Hysteresis (Oe):0.4
Noise (nT/rt(Hz) @1Hz):/
Form Factor:SOT23-5
Lead Time:In stock
Datasheet:
  • TMR2001

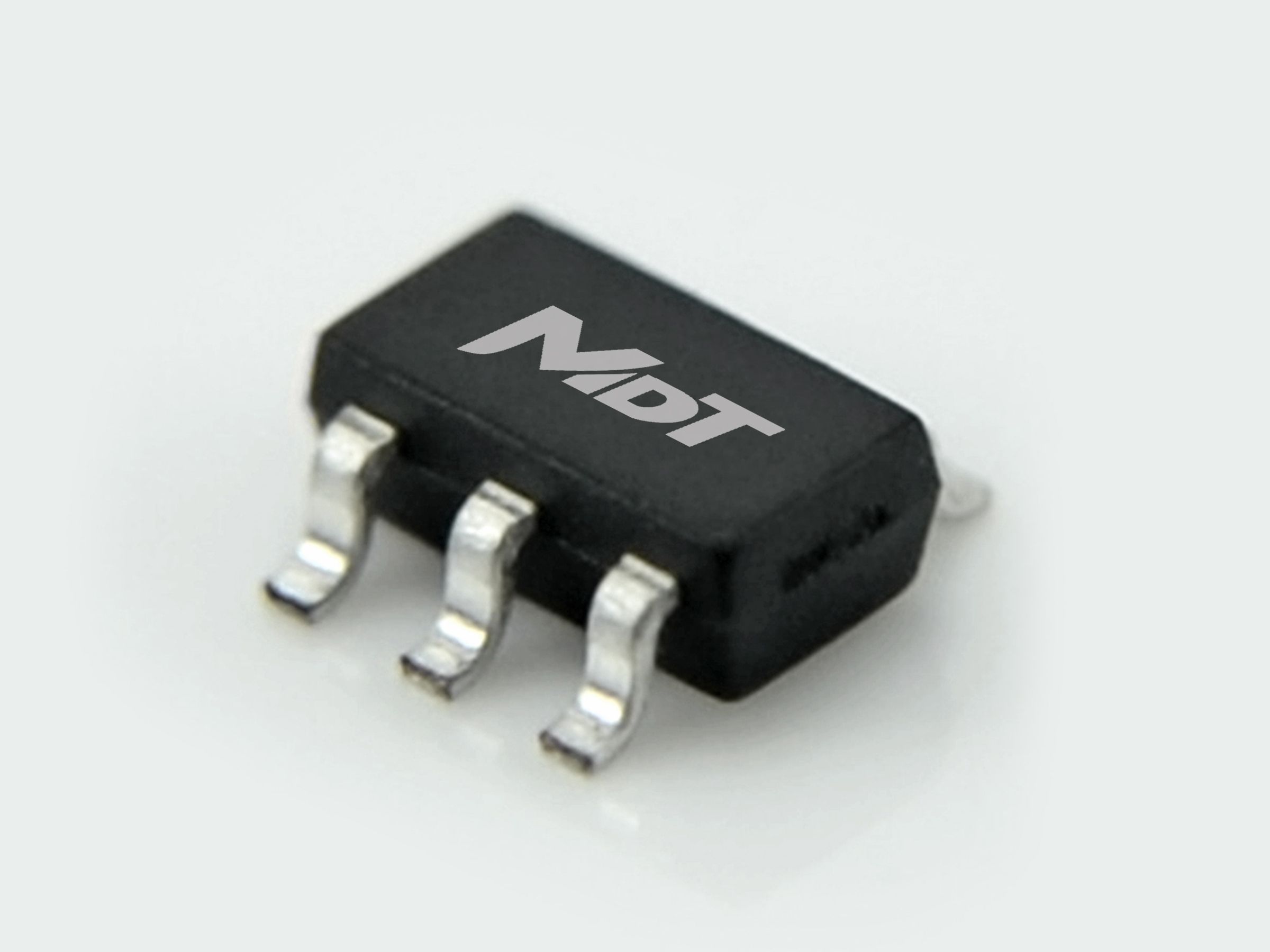

General Description:The TMR2001 linear sensor utilizes a unique push-pull Wheatstone bridge composed of four TMR sensor elements. The TMR2001 is available in a 3 mm×3 mm×1.45mm SOT23-5 package.


Features and Benefit:(1)Tunneling Magneto resistance (TMR) Technology;(2)High Sensitivity;(3)Low Power Consumption;(4)Excellent Thermal Stability;(5)Compatible with Wide Range of Supply Voltages;(6)No need for set/reset calibration


Applications:(1)Weak Magnetic Field Sensing;(2)Current Sensors;(3)Position and Displacement Sensing

sot23-5
