TMR2309 Z-axis TMR linear sensor
Back
Part No.:TMR2309
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~3 V
Sensitivity (mV/V/Oe):100
Resistance (kΩ):15
Saturation Field (Oe):±8
Sensing Direction:X/Y/Z-axis
Hysteresis (Oe):0.02
Noise (nT/rt(Hz) @1Hz):~ 0.15

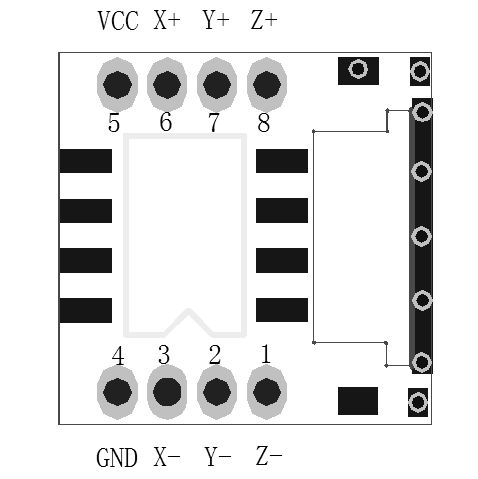

Form Factor:Module(9.5x9.5x6.0)
Lead Time:In stock
  • TMR2309

General Description:The 3-Axis TMR2309 linear sensor utilizes three unique push-pull Wheatstone bridges. The 3-Axis TMR2309 is available in a 9.5 mm×9.5 mm×6.0 mm3 package.

Features and Benefits:(1)Tunneling Magnetoresistance (TMR) Technology;(2)Ultra High Sensitivity (~100mV/V/Oe);(3)Ultra Low Noise Spectral Density (150 pT/Hz @1Hz);(4)Very Low Power Consumption;(5)Excellent Thermal Stability;(6)Low Hysteresis;(7)Compatible with Wide Range of Supply Voltages;(8)No need for set/reset calibration

Applications:(1)Weak Magnetic Field Sensing;(2)Current Sensors;(3)Position and Displacement Sensing;(4)Bio-medical Sensing;(5)Magnetic Communication

tmr2309
