TMR2305M 3 axis TMR linear sensor
Back
Part No.:TMR2305M
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):25
Resistance (kΩ):9
Saturation Field (Oe):±10
Sensing Direction:X/Y/Z-axis
Hysteresis (Oe):1
Noise (nT/rt(Hz) @1Hz):~ 2
Form Factor:Module(9.5 x 9.5 x 6)
Lead Time:In stock
  • TMR2305M

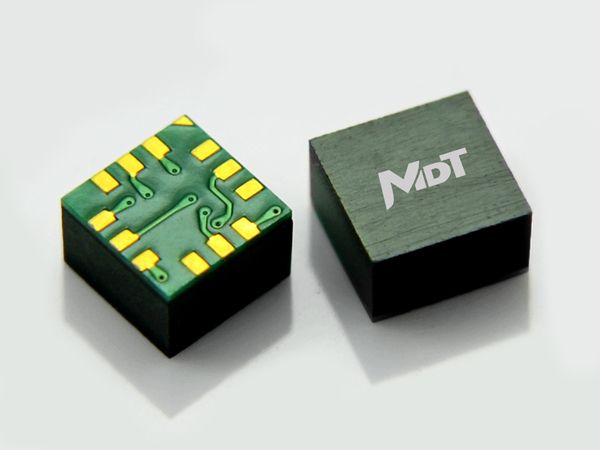

General Description:The 3-Axis TMR2305M  linear sensor utilizes three unique push-pull Wheatstone bridges. The 3-Axis TMR2305M is available in a 5 mm × 5mm × 2.5 mm LGA package.


Features and Benefit:(1)Tunneling Magneto resistance (TMR) Technology;(2)Ultra High Sensitivity (25 mV/V/Oe);(3)Very Low Noise Spectral Density (2 nT/Hz @ 1Hz);(4)Triple-axis Linear Detection;(5)Very Wide Dynamic Range;(6)Low Power Consumption;(7)Excellent Thermal Stability;(8)Compatible with Wide Range of Supply Voltages;(9)No need for set/reset calibration


Applications:(1)Three Orthogonal Direction Sensing;(2)Weak Magnetic Field Sensing;(3)Current Sensors;(4)Position and Displacement Sensing

lga12l(4x4x2.5)
