TMR2307 3 axis TMR linear sensor
Back
Part No.:TMR2307
Previous Part No.:
Bridge Configuration:Full bridge
Supply Voltage:0~7 V
Sensitivity (mV/V/Oe):8
Resistance (kΩ):1.5
Saturation Field (Oe):±30
Sensing Direction:X/Y/Z-axis
Hysteresis (Oe):0.2
Noise (nT/rt(Hz) @1Hz):~1
Form Factor:LGA12L(7x7x2.5)
Lead Time:In stock
  • TMR2307

General Description:The 3-Axis TMR2307 linear sensor utilizes three unique push-pull Wheatstone bridges. The 3-Axis TMR2307 is available in a 7 mm×7mm×2.5 mm LGA package.

Features and Benefit:(1)Tunneling Magneto resistance (TMR) Technology;(2)Triple-axis Linear Detection;(3)High Sensitivity (8 mV/V/Oe);(4)Low Power Consumption;(5)Excellent Thermal Stability;(6)Compatible with Wide Range of Supply Voltages;(7)No need for set/reset calibration;(8)Very Low Self-Noise (1nT/rtHz @ 1 Hz)

Applications:(1)Three Orthogonal Direction Sensing;(2)Weak Magnetic Field Sensing;(3)Current Sensor;(4)Position and Displacement Sensing

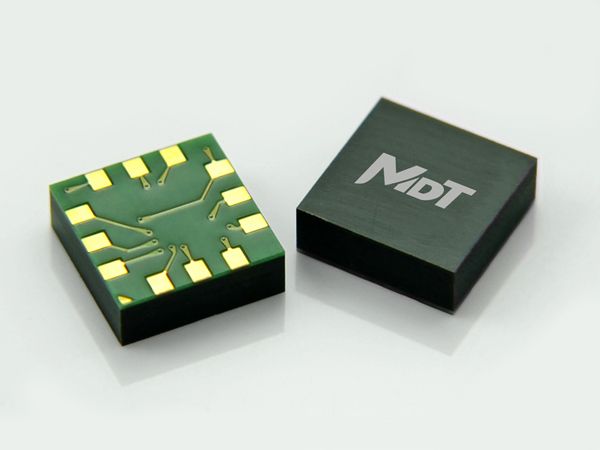

lga12l(7x7x2.5)
